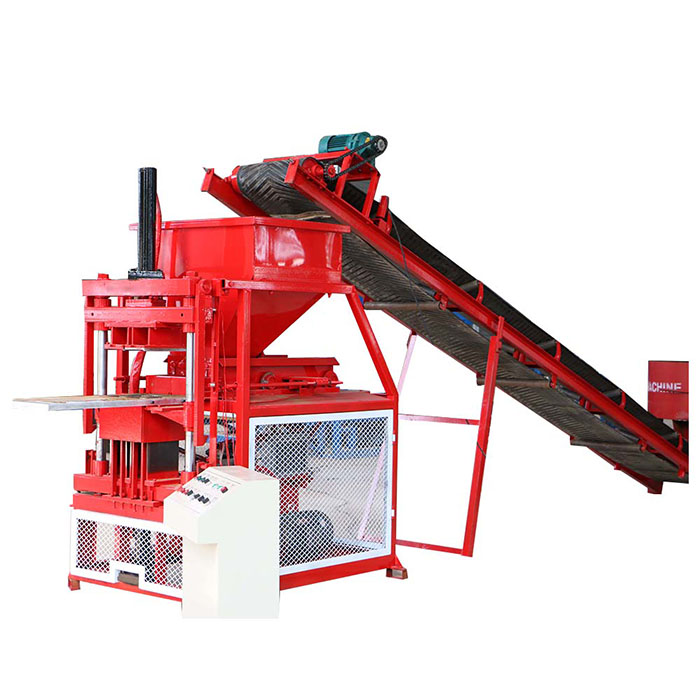

FL2-10 pressed earth block machine

FL2-10 is automatic ceb brick machine, and it can produce different shapes of clay bricks, We also have other compressed soil block machine for your choice.

Send an inquiry

    Description

     Brief introduction of FL2-10 automatic ceb brick machine.

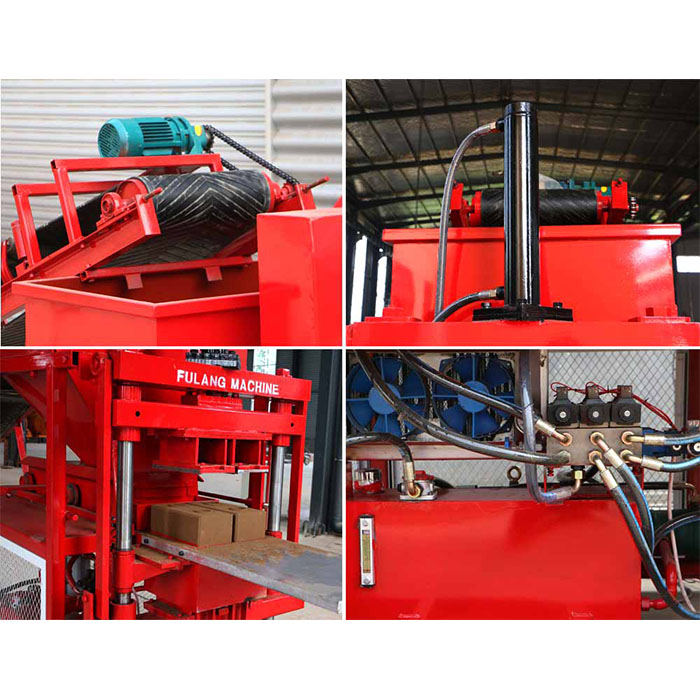

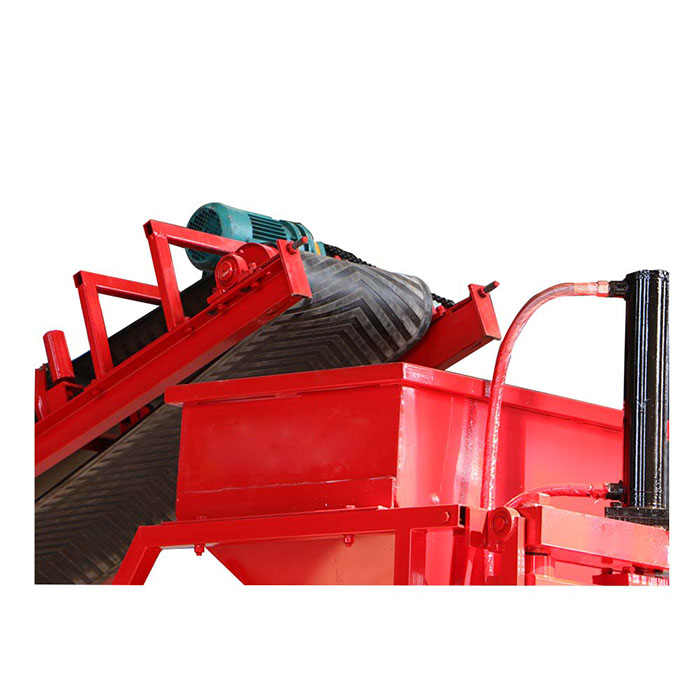

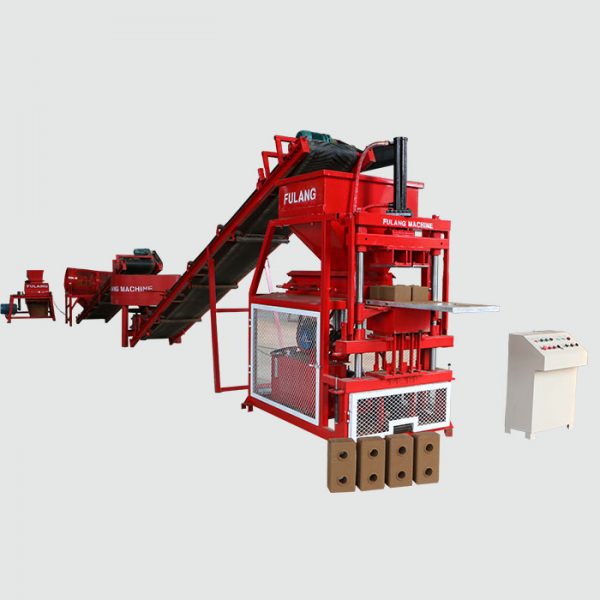

    This earth brick press machine is made up of soil crusher, soil sieve, material mixer, conveyor belt, and main engine. The detailed information as following:

    1. One machine multipurpose
      This compressed soilblock machinecan be used to making clay bricks with different shapes just by changing moulds.
      2. Advanced technology
      Hydraulic pressure technology is adopted by this hydraform interlocking blocks machine and the pressure can reach 40MPa, so that the working state is more stable and efficient, the quality of compressed earth blocks for sale with high density and high strength.
      3. High production capacity
      It is an automatic production line with PLC control system and the molding cycle is only 10s. So the production capacity is very high. For example, the size of 300*150*100mm brick, it can produce 5760 pieces per 8 hours.
      4. Wire cutting and carburizing technology
      Precision wire cutting and carburizing technology are used to make sure the brick mold with more accurate size and longer service time.

     Main technical parameters

    Dimension of host machine 2200*1050*2200mm
    Voltage Adjustable
    Shaping cycle 10s
    Host machine power 7.5KW
    Weight of the machine 1300kg
    Hydraulic system pressure 20 tons
    Raw material Soil/Clay/Sand/Cement
    Production capacity 5760 Pics/8Hours (example : 300*150*100mm)


     Brick samples for your reference
