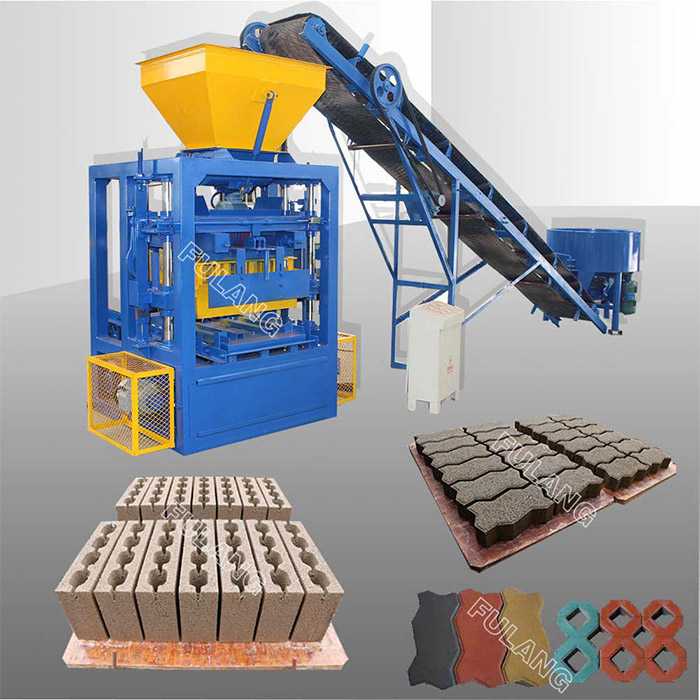

QTF4-24 concrete block making machine plans

We are brick block moulding machine manufacture with 19 years’ experience, and main market is Africa. If you need concrete hollow block machine, welcome to contact us!

Send an inquiry

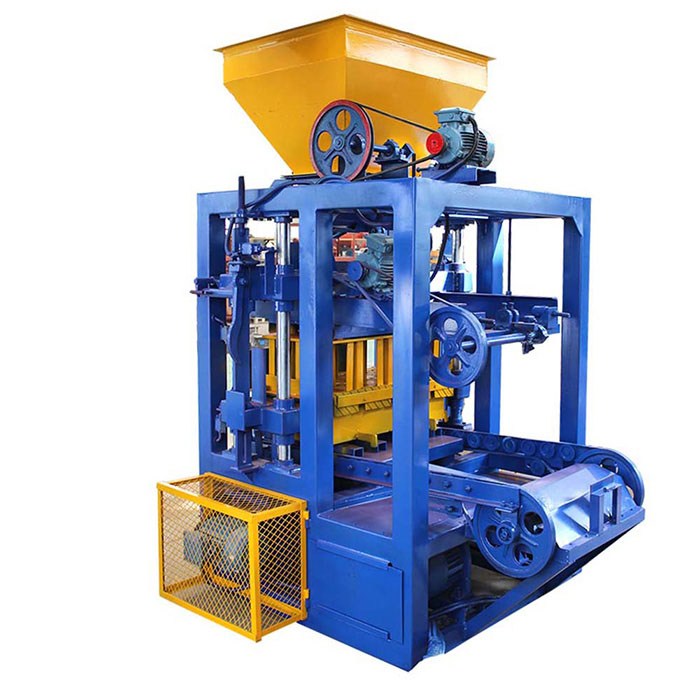

    Machine description
    QTF4-24 is a semi-automatic hollow brick machine, with the following advantage:

    1. Multifunction, high adaptability
    This machine only suitable for making concrete block, but also suitable for fly ash, slag, and other materials. Further more, it can produce various specifications of building bricks, like hollow bricks, solid bricks and pavers etc, just by replacing molds.
    2. High quality material
    QTF4-24 structure is made of high performance steel Q345. Thus it has high toughness and strength, wear and tear resistance.
    3. Advanced mold
    In the process of block molds production, precise line cutting technology and carburizing heat treatment are adopted to prolong its service life. The mold is customizable, and we will provide one free mold with the machine.
    4. High quality electric components

    Electric parts are famous brands, like original Mitsubishi PLC control system.

    Technical parameters

    Dimension 2060x1730x2580mm Weight 3Ton
    Shaping cycle 24s Vibration foce 35.5KN
    Host machine power 13.45KW Mixer model JQ350
    Pallet size 850x550x30mm Certification CE&ISO
    Area needed 2000m2 Workers needed 4-6 person
    Workshop need 50m2 Material workshop 300m2
    Water consumption 4ton/day Production capacity 2880-3600pieces/8H




    Block  samples
    Different shapes of blocks can be produced by this brick manufacturing equipment, and the following are some hot types for your reference.
