hydraulic operated concrete block making machine

QTF4-25D is a fully automatic hollow brick making machine and it can produce different kinds of hollow and solid bricks in the hollow blocks manufacturing process, welcome to contact us.

Send an inquiry


     Main advantage of QTF4-25D block machine

    QTF4-25D is a fully automatic hollow brick making machine with the following advantages:

    1. One machine is multinational:

    This hollow blocks manufacturing machine can produce various shapes blocks and only need to replace different molds. We can design molds of different shapes according to your needs.

    2.High quality configuration:

    This fully automatic fly ash bricks machine price is equipped with Siemens motor, Schneider electronic control components, YUKEN hydraulic system, Mitsubishi control system.

    1. Advanced technology:

    This hydraulic hollow block making machine adopted the hydraulic pressure technology to make sure the hollow bricks produced are more durable and high strength.

    The whole design of blocks making process are based on German advanced technology and takes into account comprehensive coordination principle and the reasonable sequence of internal structure.

    1. High quality and customizable mould:

    Advanced wire cutting and carburizing heat treatment technology are adopted in the production process of brick mould, greatly improving the quality of the mold and prolonging the service life of the mold.

    ►Technical parameters and theoretical production capacity

    Technical Parameters
    Dimension of host machine 3700*2100*23000mm Applied products hollow, solid and paving blocks
    Weight  of the machine 3T Pallet size 850*550*30mm
    Shaping cycle 20s Voltage Adjustable
    Vibration force 35.5KN Host machine power 16.35kw
    Raw material Soil/Sand/Cement Mixer model JQ500


    Theoretical  Production Capacity
    Size(L*W*H) Pcs/Mould Pcs/Hour Pcs/8Hours
    400x100x200mm 7 1008 8064
    400x250x200mm 3 432 3456
    400x150x200mm 5 720 5760
    400x200x200mm 4 576 4608
    230x110x70mm 20 2880 23040

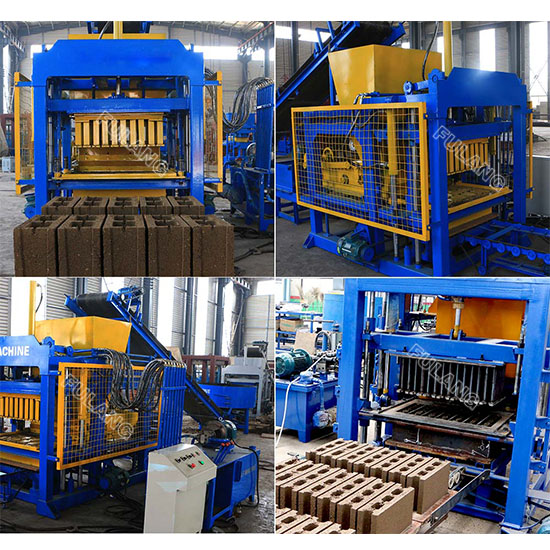

    ► Different brick samples

    It can produce almost all kinds of hollow and solid blocks. It can produce different kinds of blocks just by changing mould. We can also design brick molds according to customer requirements. We have professional engineers to serve you.

    ►Installation abroad
