mobile machine to make cement blocks

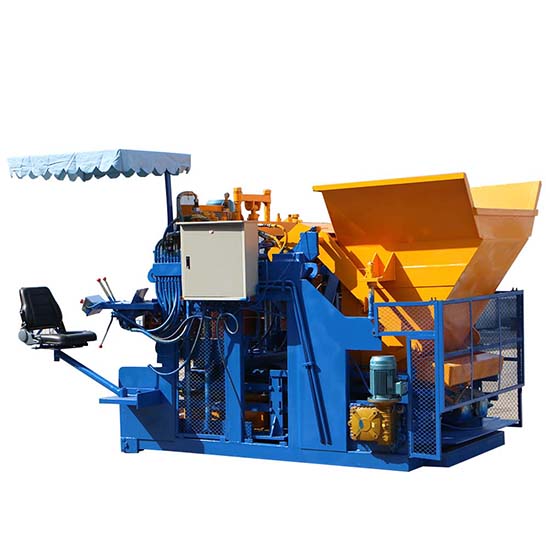

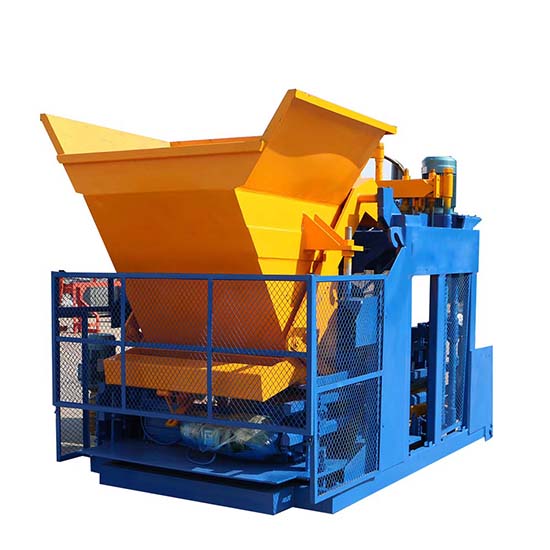

FL10-15 mobile concrete block making machine

Brief introduction
FL10-15 is a hot sale mobile concrete block making machine, it has the following advantages:
♦ 1. Body: This machine take the international standard Q345 steel as raw material, combine special welding technology to carefully craft.

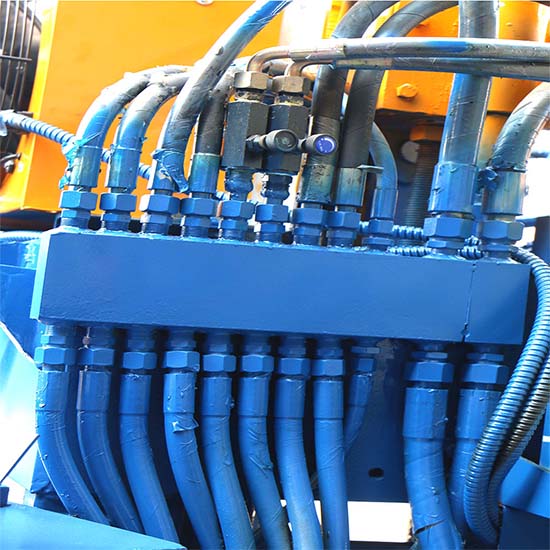

♦ 2. Hydraulic station: Adopting imported proportional valves and seals to accurately control the volume of hydraulic oil, which can control all the key components to act precisely.
♦ 3. Motor: Our standard configuration is national well-known brand motor, and you can customize the world famous brands, such as Siemens and ABB.
♦ 4. Mold: Adopting advanced line cutting technology to make sure the precise mold size. The mold is customizable and replaceable, so this machine can produce different kinds of hollow blocks, solid blocks, and curbstones.

Host machine main technology parameters
Dimension
3150x1800x2400mm
Weight
4.2Ton
Shaping cycle 10~15s Vibration foce 50KN
Host machine power 18.6KW Rated pressure 16-25Mpa





Production requirement
Area 3000m2                                           Worker
3~4 person
Concrete ground
2000m2 Distribution power 50KW
Raw material store workshop 600m2 Water consumption 10Ton/day

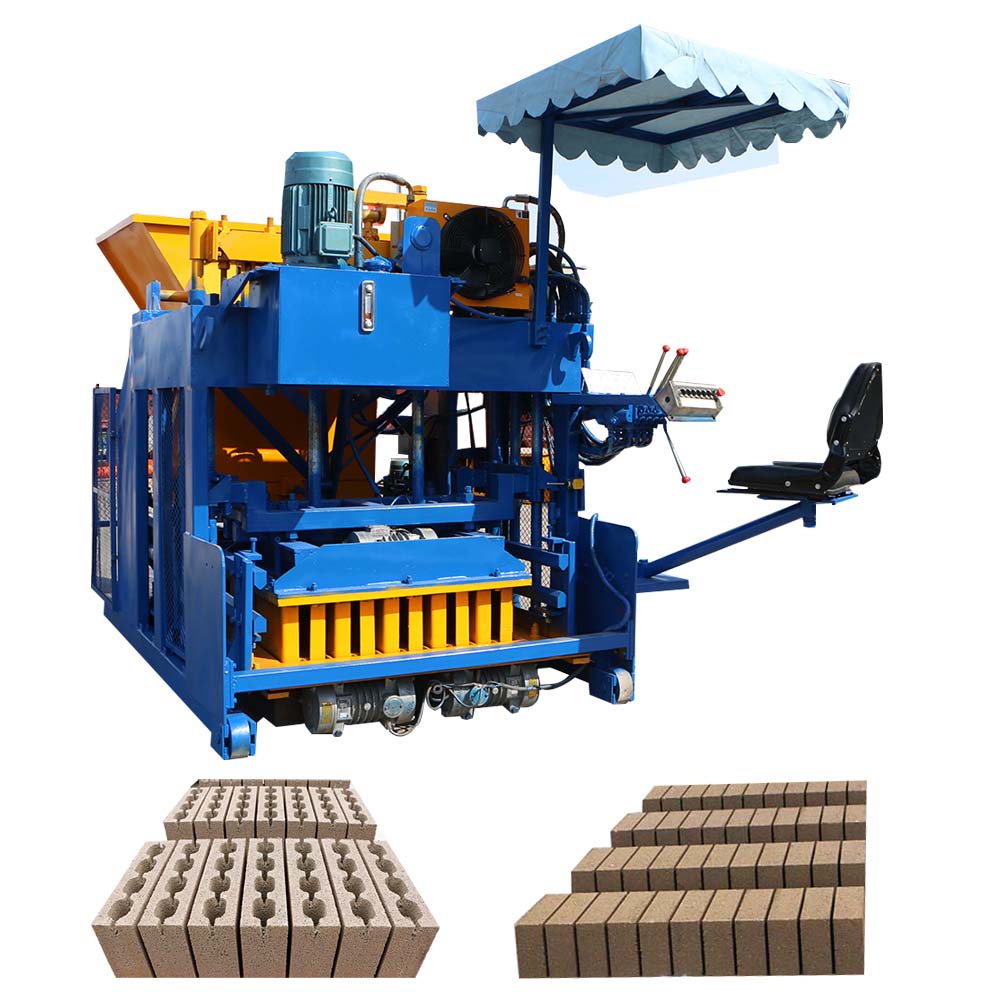

Hollow and solid block samples
hollow and solid block samples
