QTF40-2 manual cement brick machine

Newest tp brand Cement brick machine
1.Siemes motors
2.Hollow block&solid bricks
3.Low cost big profit
4.4 person required.

Send an inquiry


    Concrete cement brick machine

    cement brick machine details

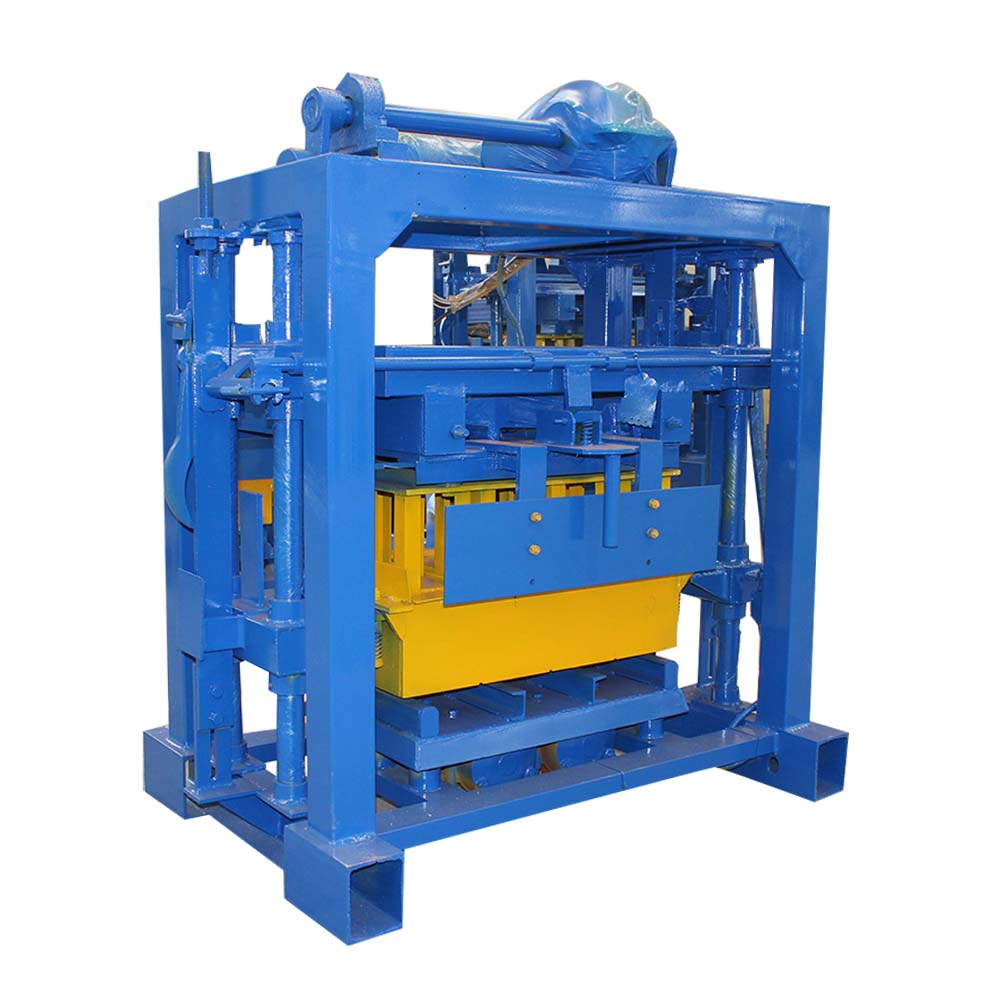

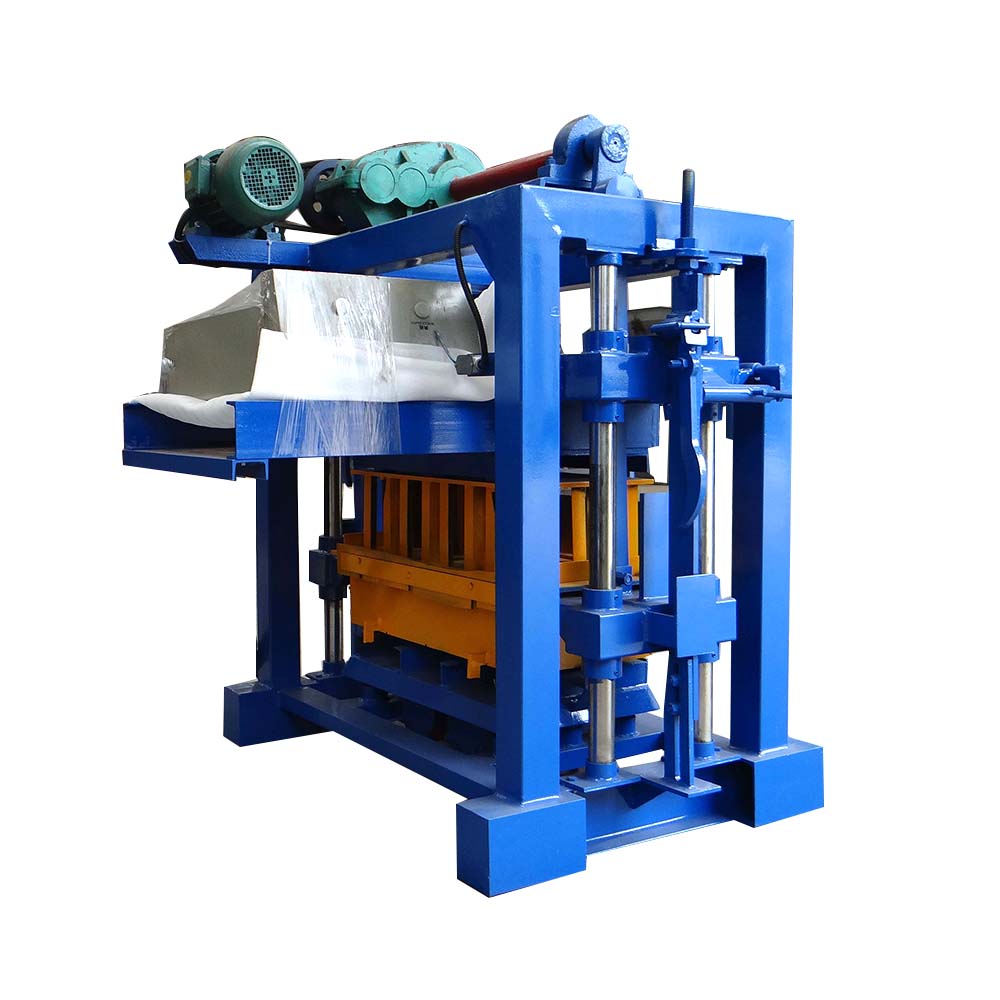

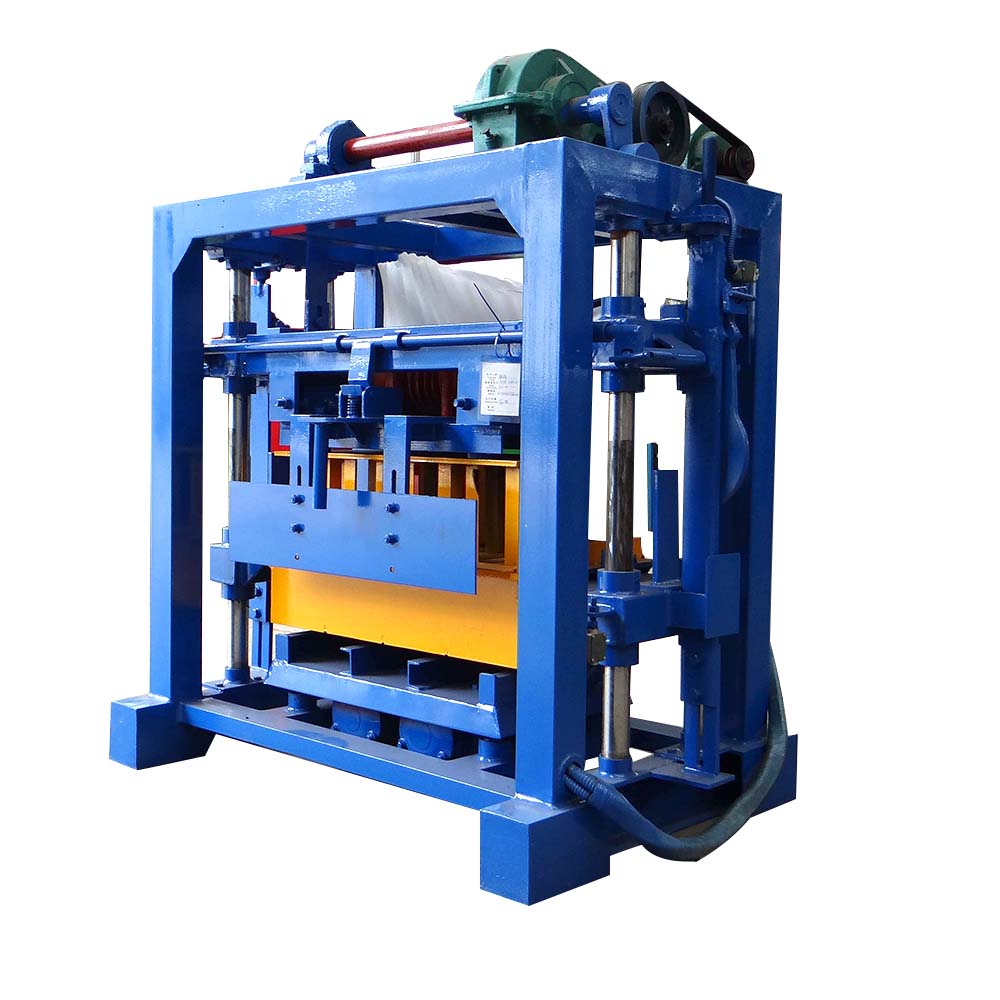

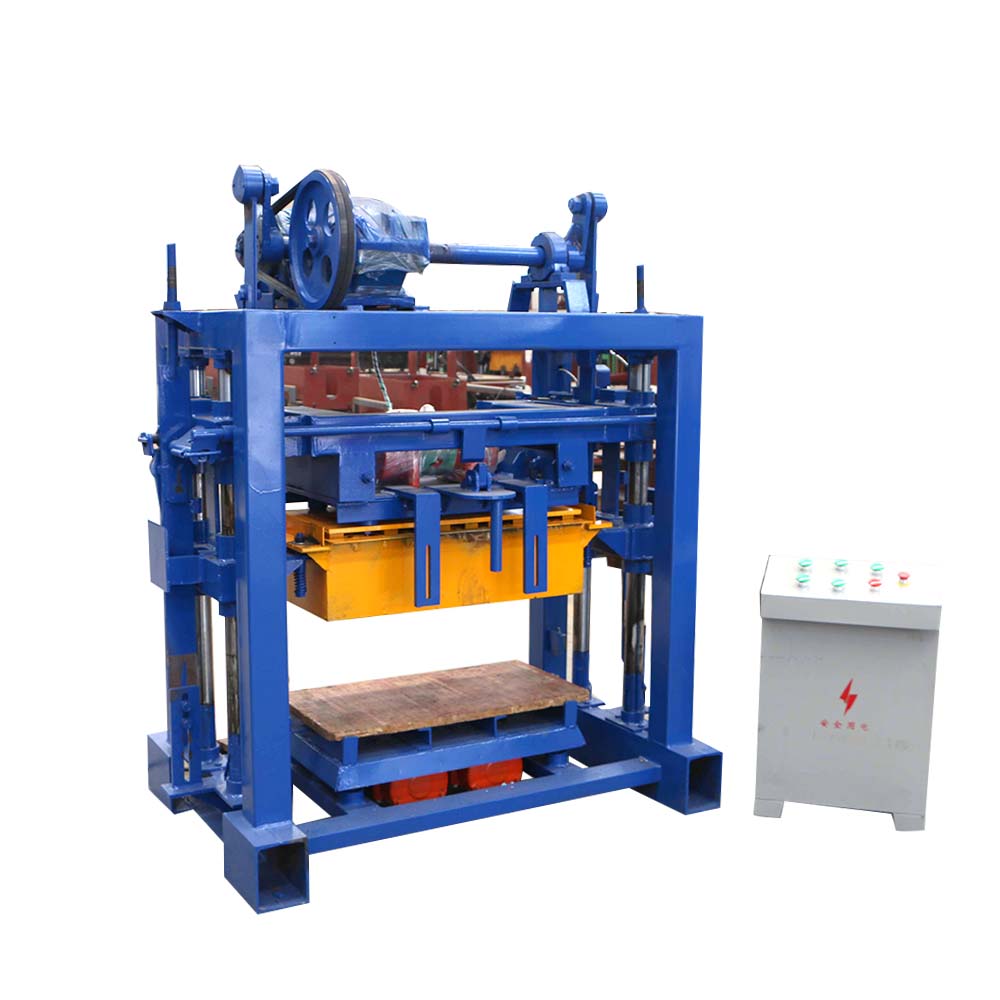

    QT40-2 manually operated cement hollow and solid brick machine
    QTF40-2, is a cement brick machine. This hollow block making machine Philippines is based on the original baking-free brick machine. After technical improvement, we produce this new type of cheap automatic block machine. Its design is reasonable. The machine is equipped with super vibrators,so that the blocks produced is of better quality and higher compactness.
    This machine can produce 2000-3600 pieces hollow or solid block just by changing the mould.

    (1) Blocks this machine able to make

     Overall size  1350x1460x1500mm  Host machine power  8.8KW
     Production cycle  40S  Vibration force  30KN
     Pallet size  850×450×40mm  Host machine power  8.8KW
     Machine weight  1.8T  Mixer model  JD350
     Voltage According to local condition

    (2) QT40-2 small concrete block press machine production capacity

    QT40-2 Theoretical Production capacity
     Size(LxWxH)  Pcs/Mould  Pcs/ Hr  Pcs/ 8 Hr
     240X115X53 solid brick  18  1500  12000
     400X150X200 hollow brick  5  360  2880
     400X200X200 hollow brick  4  280  2240
    We can design moulds according to your requests,produce color blocks

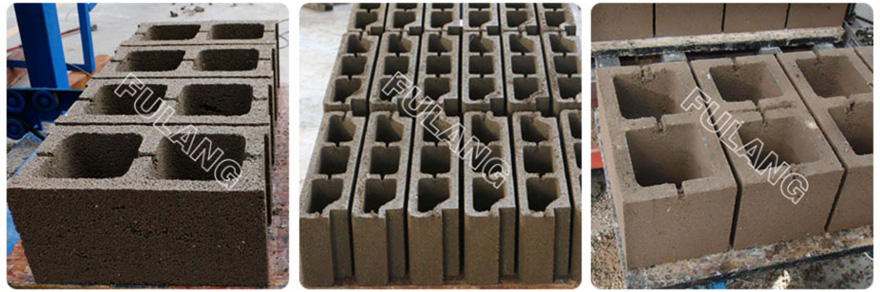

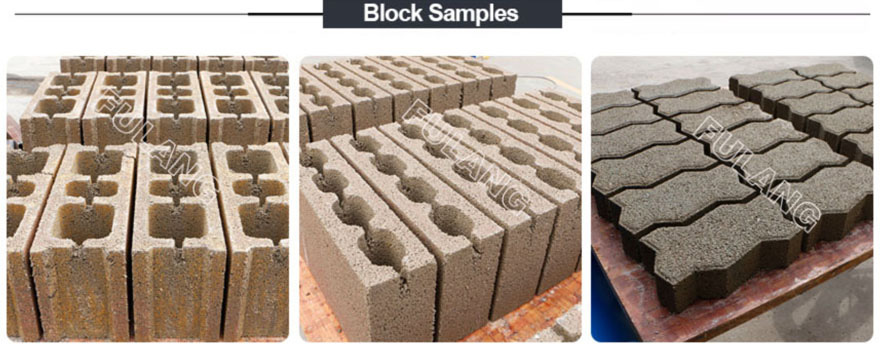

    block samples

    (3) QT40-2 small cement brick making machine equipment list

     No.   Item  Quantity
                          Batching system
     01  JD350Mixer(Φ1.2M)  1set
                          Block machine parts
     01  QT40-2 Block making machine  1set
     02  Electrical control unit  1set
     03  Block mold  1set
     04  Manuel trolley  2sets
     05  Some spares and tools 1set

    (4)QT40-2 small manual cement brick machine advantages

    1. QT40-2 small manualbrick machinedoes not need installation
    2. QT40-2 manual compressedbrick making machinecan make various hollow block, solid brick by changing molds, The block sizes and shape are customized
    3. QT40-2 small manual compressed concrete cementbrick machineuses 60m2 workshop only.
    4. QT40-2block machineneeds 3-4 persons to operate.

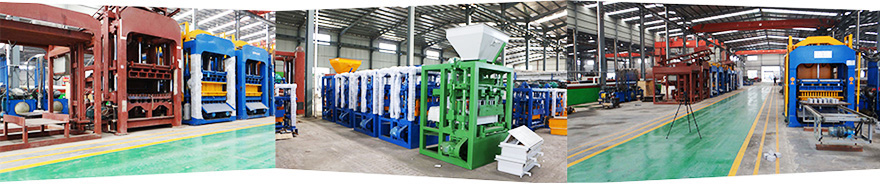

    (5) Company Overview

    company overview

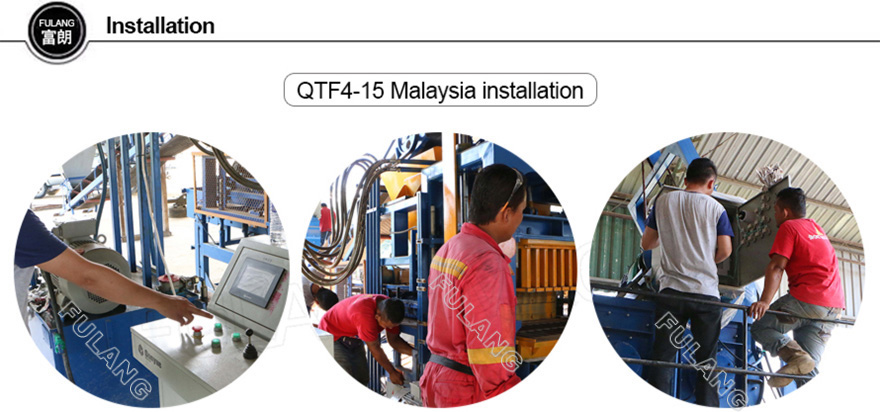

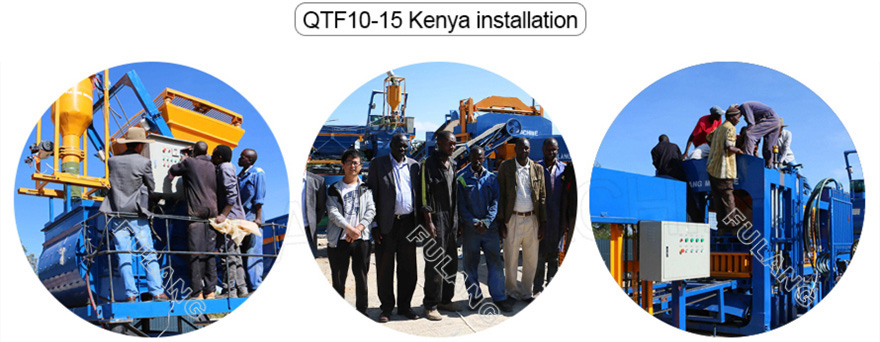

    (5) Installation abroad

    installation abroad
