FL1-25 Clay Block Machine: A Practical Way to Start Compressed Earth Block Production
For small brick producers, starting a compressed earth block business does not always require a large automatic factory.
Sometimes the better option is a compact machine that is simple to operate, easy to maintain and flexible enough to produce different block designs.
The FL1-25 clay block machine is built around that idea.
It uses hydraulic pressure to form prepared soil or clay mixtures inside a mold, producing dense interlocking blocks without the need for a large vibration-based concrete block line. The machine can also work with different molds, giving producers more flexibility when local demand changes.
How Does the FL1-25 Form a Block?
The working process is straightforward.
A prepared soil mixture is placed into the mold. The hydraulic system then applies pressure, compacting the material into the required shape.
Once the forming cycle is complete, the block is released and can be removed from the machine.
The video description lists a forming cycle of around 10–15 seconds for the FL1-25 version shown.
The simplicity of the process is one of the reasons this type of clay block machine is attractive to smaller producers.
There are fewer stages than in a large automatic concrete block production line, and operators can understand the basic working process relatively quickly.
Good Blocks Start With the Right Soil
The machine provides the pressure, but the raw material still determines much of the final result.
Soil conditions vary considerably from one location to another.
Some soils contain more clay. Others contain more sand or larger particles. Moisture content also changes how the material behaves under pressure.
Before regular production begins, the soil should therefore be prepared carefully and tested with the intended block design.
Large particles normally need to be removed or crushed, and the material should be mixed evenly before it enters the mold.
Depending on the required block performance, cement or another suitable stabilizer may also be added to the mixture.
A good machine cannot completely compensate for poorly prepared material.
Hydraulic Pressing Makes a Difference
Unlike conventional concrete block machines that rely heavily on vibration, compressed earth block equipment uses pressure to compact the soil mixture.
For the FL1-25 shown in the video, the listed hydraulic pressure is 16 MPa.
The purpose is not simply to create a hard-looking brick.
Consistent pressure helps the material fill the mold and maintain its shape after forming.
For a producer, the real goal is repeatability.
One good block is easy to make during a demonstration. A useful clay block machine needs to produce similar blocks throughout a working day.
That is why raw-material consistency, mold condition and hydraulic performance all matter.
Different Molds Give Producers More Options
One of the practical features of the FL1-25 is the ability to change molds.
Different interlocking block shapes can be produced by installing a suitable mold, and customized molds can also be made for specific block requirements.
This is useful for businesses serving more than one type of customer.
A producer may begin with a standard interlocking wall block and later add another size or design for a different construction project.
Instead of replacing the entire machine, the product range can be expanded through the mold system where compatible.
Before ordering a mold, however, buyers should provide the exact block dimensions.
A drawing, sample or clear dimensions are much more useful than simply asking for an “interlocking brick mold.”
A Small Machine Can Still Be Part of a Production Line
Although the FL1-25 itself is compact, it does not have to operate completely on its own.

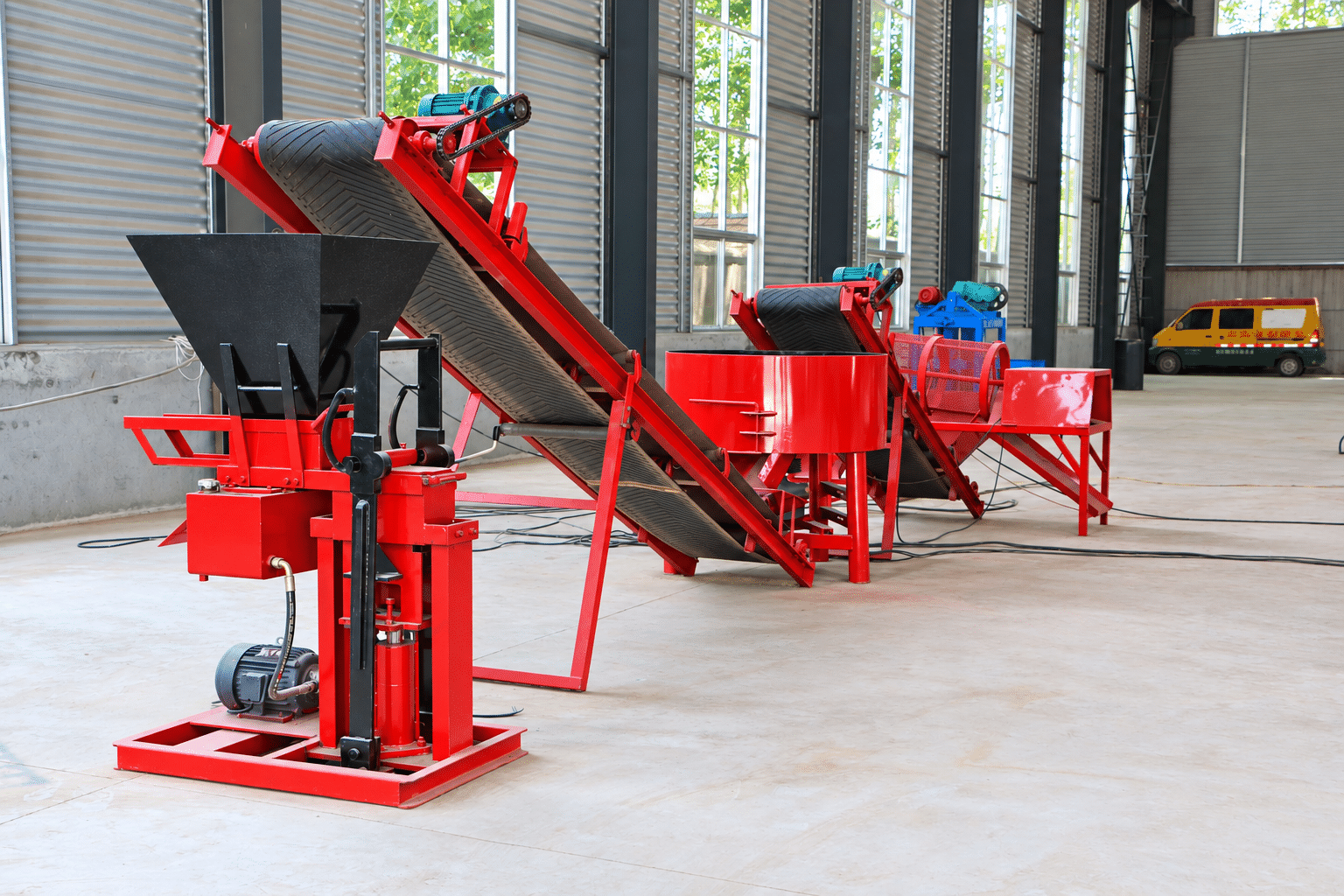

For higher daily output, the production setup can include equipment such as a soil crusher, screening machine, mixer and conveyor. Product information for the FL1-25 specifically lists these as possible supporting machines.
This allows a producer to start with a relatively simple setup and add more material-preparation equipment as the business grows.
That approach can make sense for buyers who want to control their initial investment rather than purchasing a highly automated line from the beginning.
Electric or Diesel Power?
Site conditions should also influence machine selection.

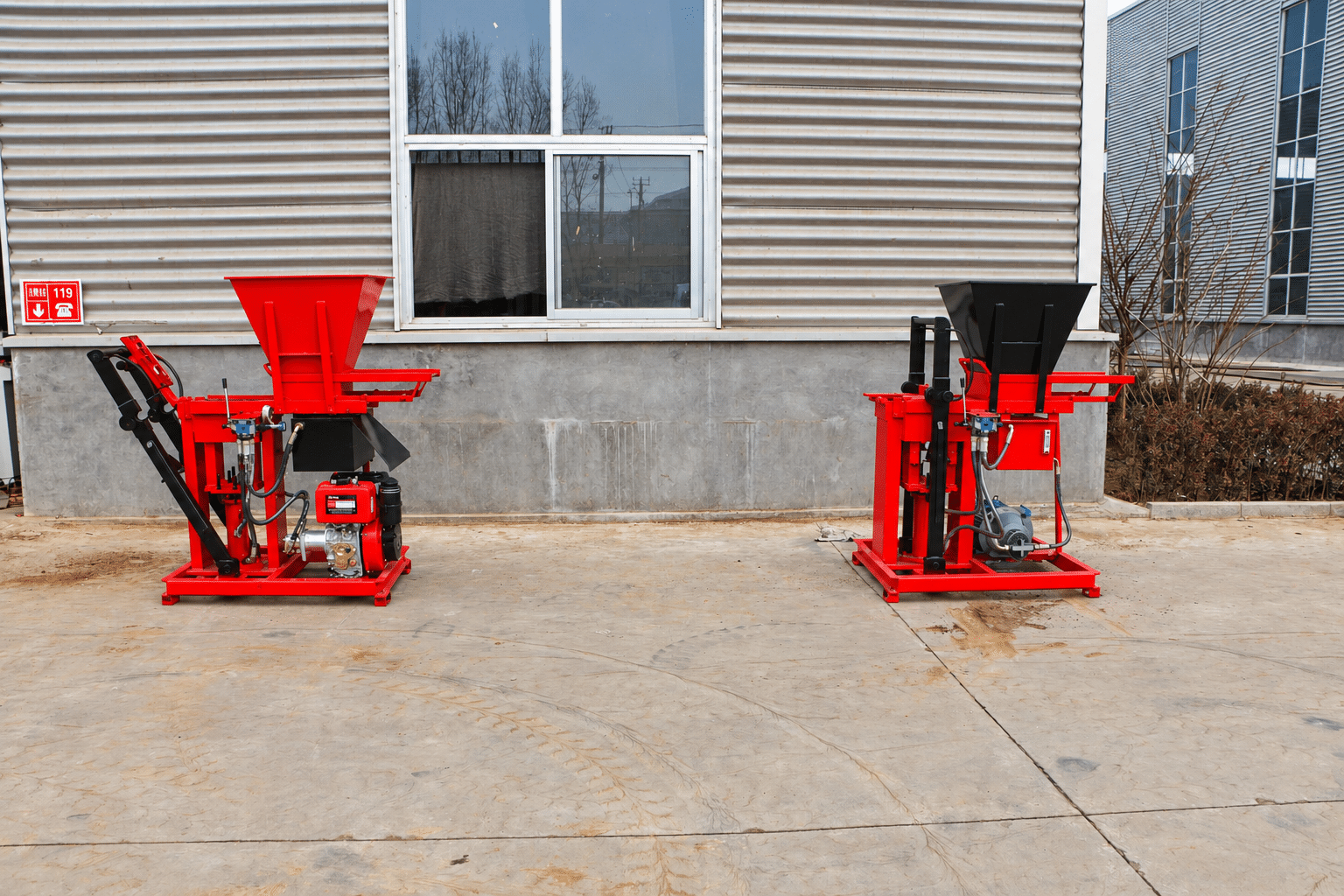

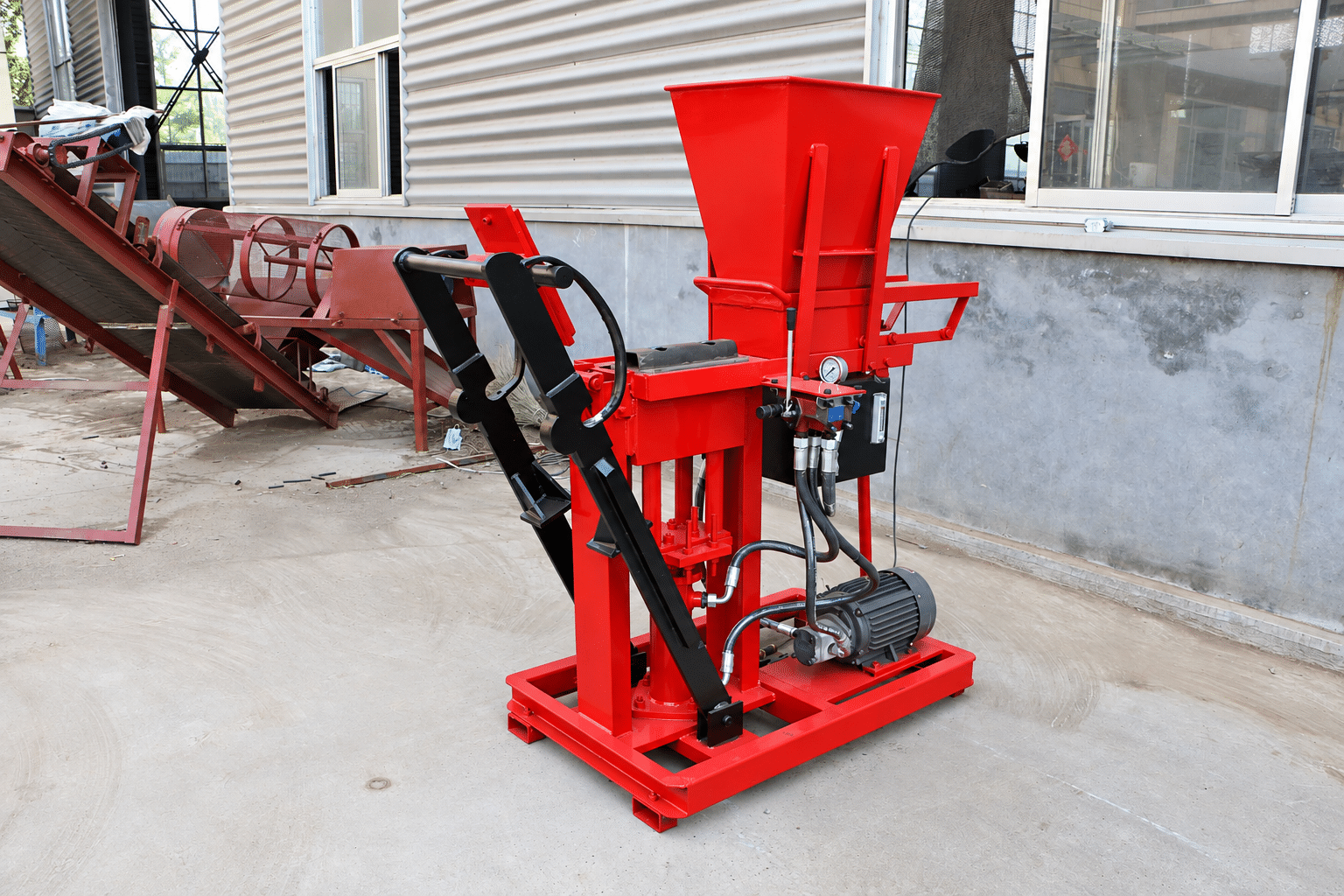

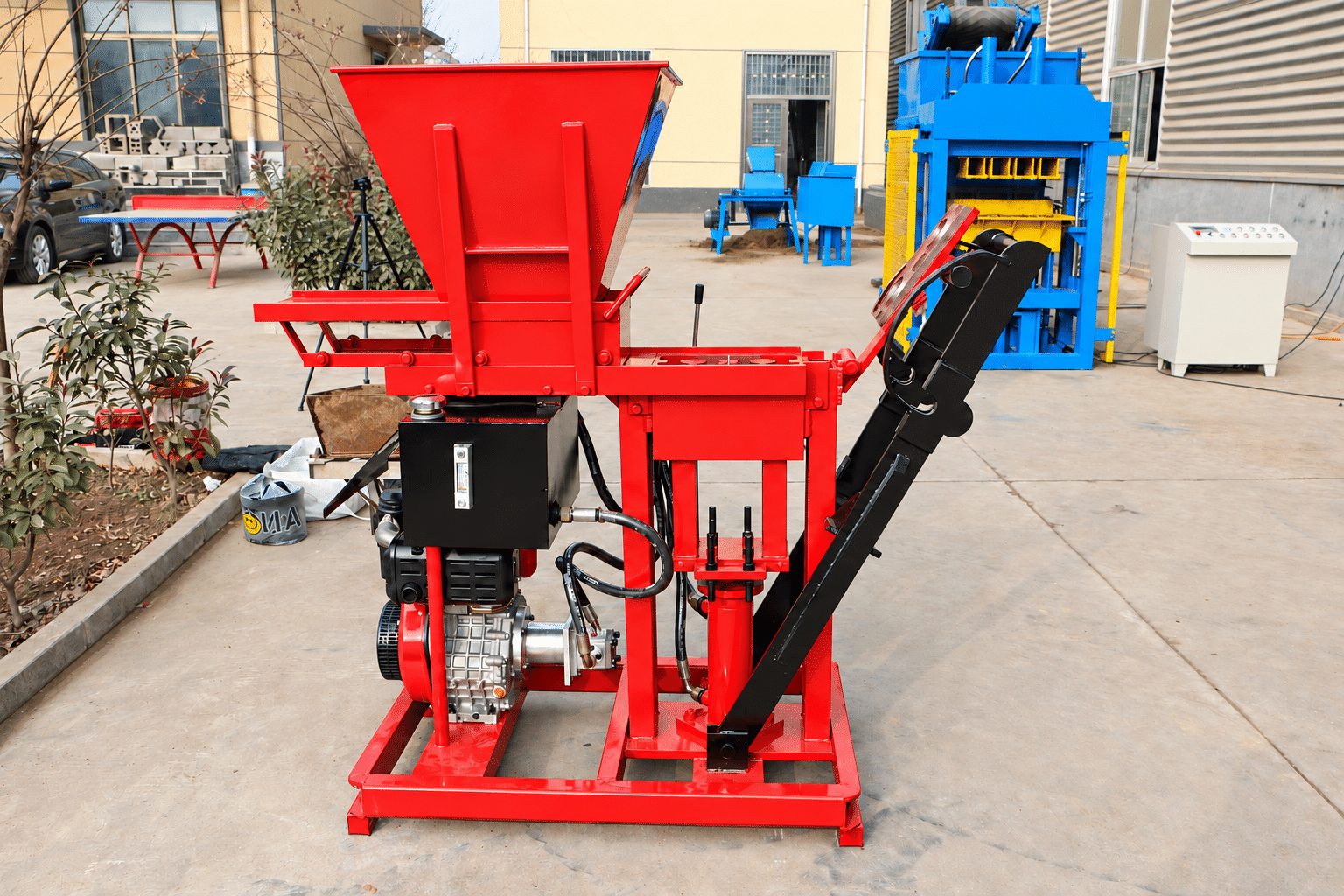

FL1-25 versions are available with electric motor or diesel power options. The diesel-powered version is particularly useful where stable electricity is difficult to access, while an electric configuration may be more convenient for a permanent production facility with reliable power.
For buyers operating in rural areas, this can be an important consideration.
A machine is only useful if the available power supply matches the conditions where it will actually work.
Who Is the FL1-25 Suitable For?
The FL1-25 is best suited to projects where simple operation, compact size and flexible block production matter more than very high automation.
Typical users may include:
- small brick manufacturers;
- entrepreneurs starting a local block business;
- rural construction projects;
- contractors producing blocks near the job site;
- markets where compressed earth or interlocking blocks are commonly used.
For these buyers, a smaller clay block machine can offer a more practical starting point than a large automatic production line.
What Should You Confirm Before Ordering?
Before choosing an FL1-25, start with the block you want to produce.
Send the supplier the exact block dimensions or a photo of the required design.
You should also confirm your local soil type, preferred power source and expected daily production.
If the project will use a complete production line, discuss the crusher, sieve, mixer and conveyor at the same time.
These details make it much easier to choose a machine and mold configuration that actually fits the project.
A Practical Entry Into Compressed Earth Block Production
The FL1-25 is a relatively simple machine, and that is part of its appeal.
It does not try to turn a small block operation into a complicated factory.
Instead, it focuses on the essentials: preparing the material, placing it into the mold, applying hydraulic pressure and producing a repeatable compressed earth block.
For small and growing manufacturers, that can be exactly what is needed.
The best clay block machine is not necessarily the largest one available.
It is the one that matches your raw material, block design, production target and local working conditions.
Looking for a Clay Block Machine?
Tell us your block dimensions, local soil conditions, required daily capacity and preferred power source.
We can recommend a suitable FL1-25 configuration, mold design and supporting equipment for your project.
Contact us for machine videos, technical information and a customized quotation.
