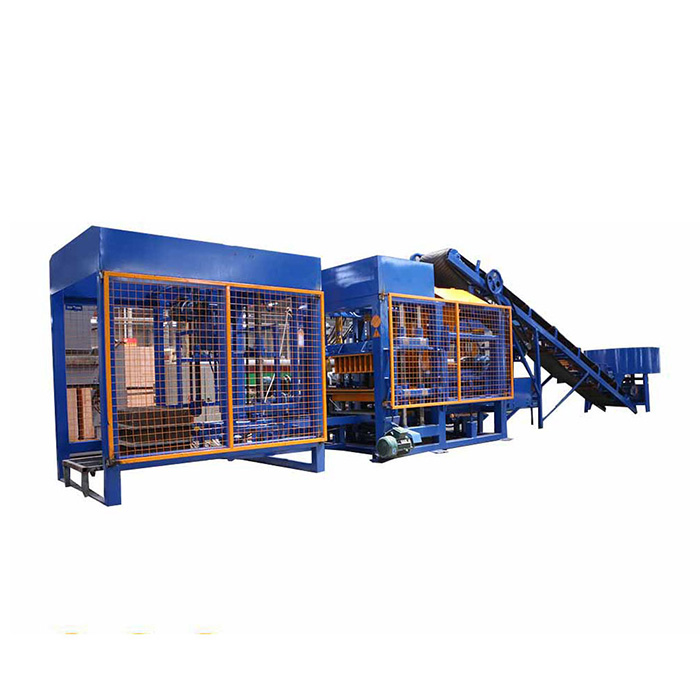

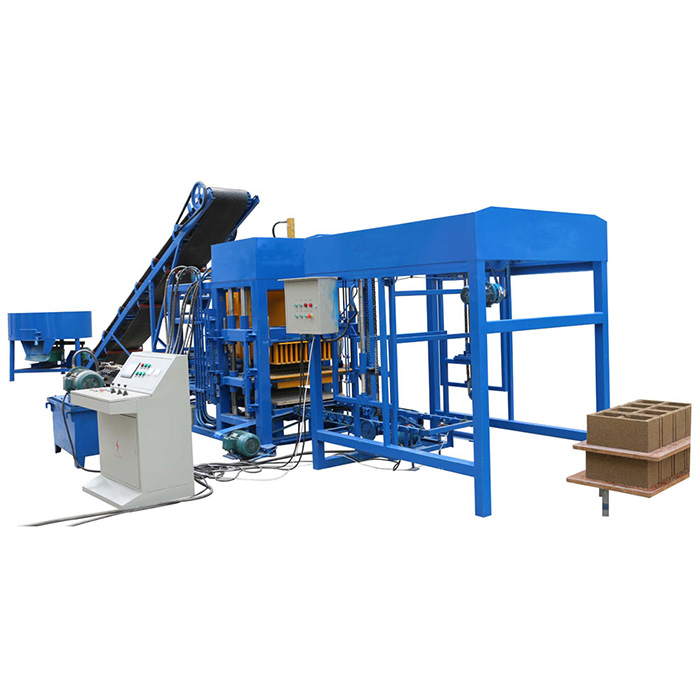

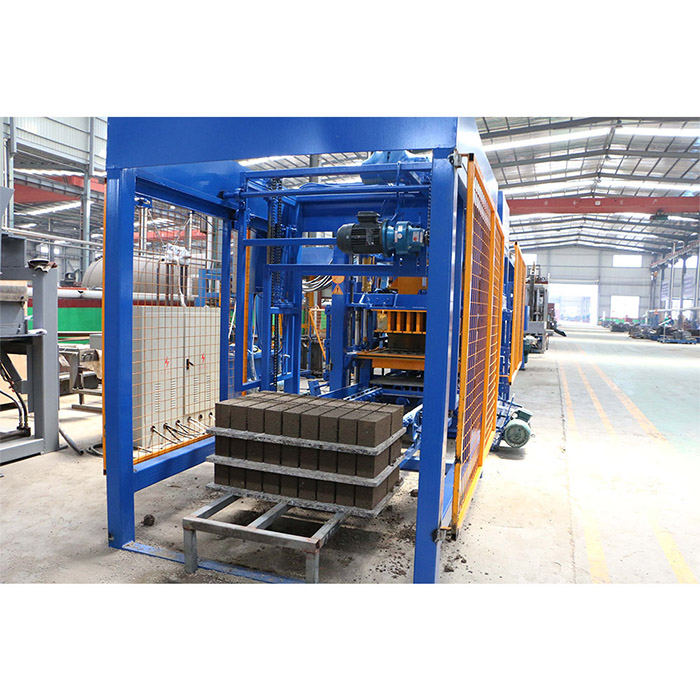

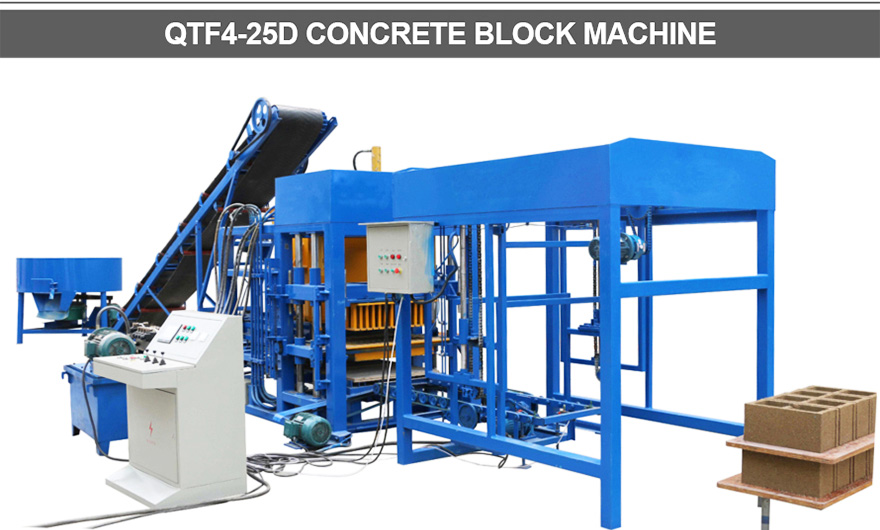

QTF4-25 concrete fly ash bricks fully automatic machine

Send an inquiry


    QT4-25 fully automatic concrete block making machine is our best selling automatic block machine for many years, and it has some outstanding advantages.
    1. Using advanced electronic control technology and reliable hydraulic system to obtain simple operation and stable function.
    2. The frame of this machine is special designed to achieve double end synthesis output vibration technology to optimize the vibrators, so the excited vibration force is distributed uniformly in the vibration table.
    2. With the advanced vibration technology and the broken arch device, the integrated vibration control of the material is realized, the most homogeneous and the optimum forming process are achieved.
    3. Mean while the mould is pressed evenly by the hydraulic oil from hydraulic station, this makes the concrete only need 2~3 seconds, so this machine is especially suitable for producing high strength brick, once shaped, you can stack immediately. This will save you lots of invest on pallets.

     Main Technical Parameters

    1 Dimension 3700x2100x2300 5 Total machine power 29kw
    2 Mould period 20-24s 6 Vibration force 35.5KN
    3 Pallet size 850x550x25mm 7 Mixer model JQ500
    4 Workshop area 160m2 8 Voltage 380/415/440


     Capacity Table

     No Size(LxWxH) Pcs/Mould Pcs/Hour Pcs/Shift
    1 400x200x200mm 4 576 4608
    2 400x100x200mm 7 1008  8064
    3  400x150x200mm  5  720  5760
     4  400x250x200mm 3 432 3456

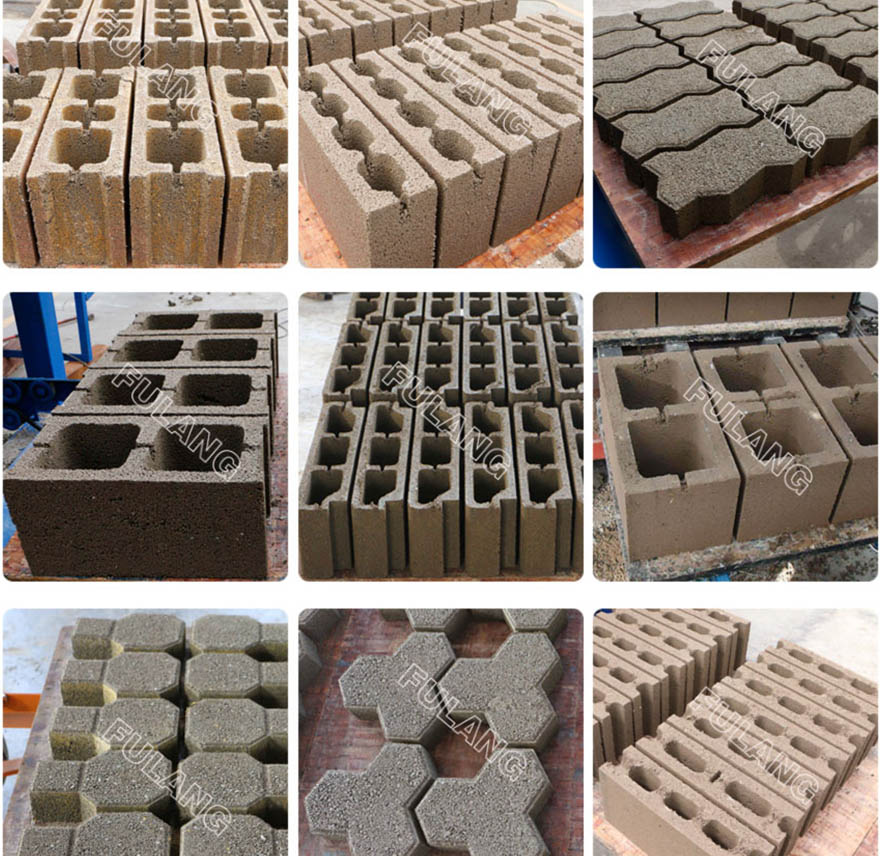

    ■ Block samples this machine can produce
