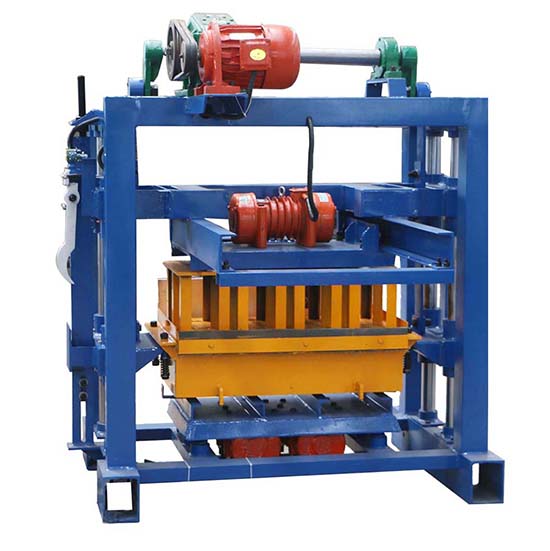

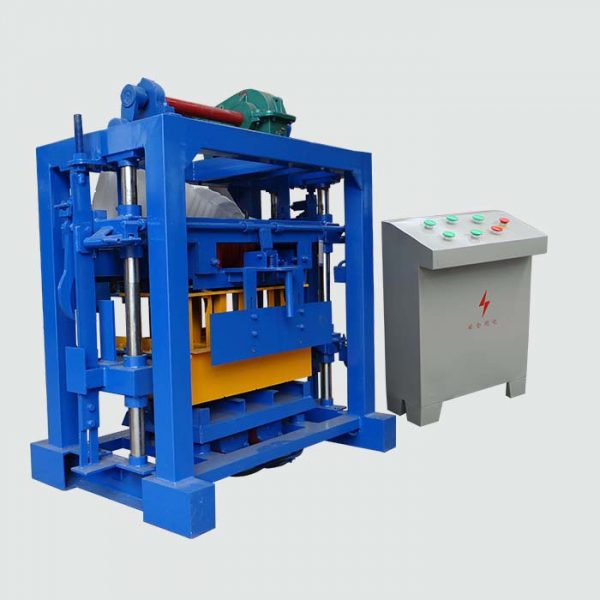

Semi automatic fly ash bricks machine

Semi automatic fly ash bricks machine
Main advantage of this machine
1. Funtion: QTF40-2 can produce various hollow/solid blocks and pavers by changing moulds
2. Production efficiency: For size 400*150*200, It can achieve 3000 pieces brick per shift (8 hours) , so the production efficiency is very high among manual bricks machines types of brick.

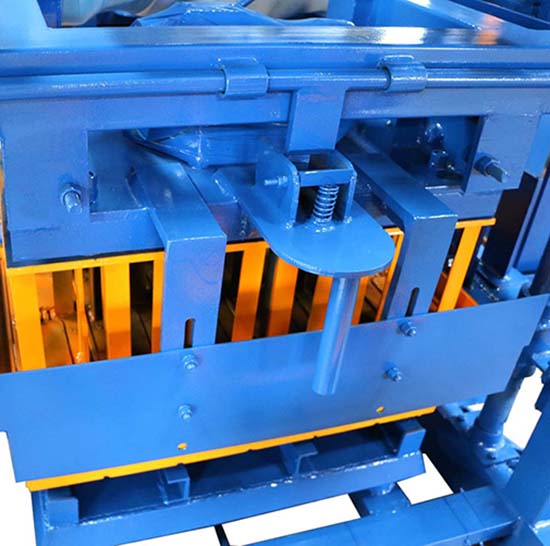

3. High quality mould: Our moulds adopt precise line cutting technology and carburizing treatment technology to prolong mold life and increase block precision.
4. High quality material: This model is made of high-performance steel Q345 selected according to international CE standard. Thus it has advantages in high toughness, wear and tear resisting and high strength.
5. Operation: Equipped with PLC control system, it's simple to operate QTF40-2 with labor saving.

Technical Parameter and Production Capacity

Technical Parameters
Dimension of host machine  1350x1460x1700mm   Pallet size 850x450x25mm
Mould period  40s  Total weight  1800kg
Total Machine Power  8.8kw Mixer model  JQ350
Vibration force  30KN  Products  Hollow block, solid block
Voltage  Adapt to your local voltage  Raw material  Crushed stone, sand, cement, dust
and coal fly ash, cinder and other industrial wastes

Theoretical Production Capacity
Reference pic   Pcs/Mould Pcs/8h
400x100x200mm 7 4200
400x150x200mm 5 3000
200*100*60mm 14 8400
