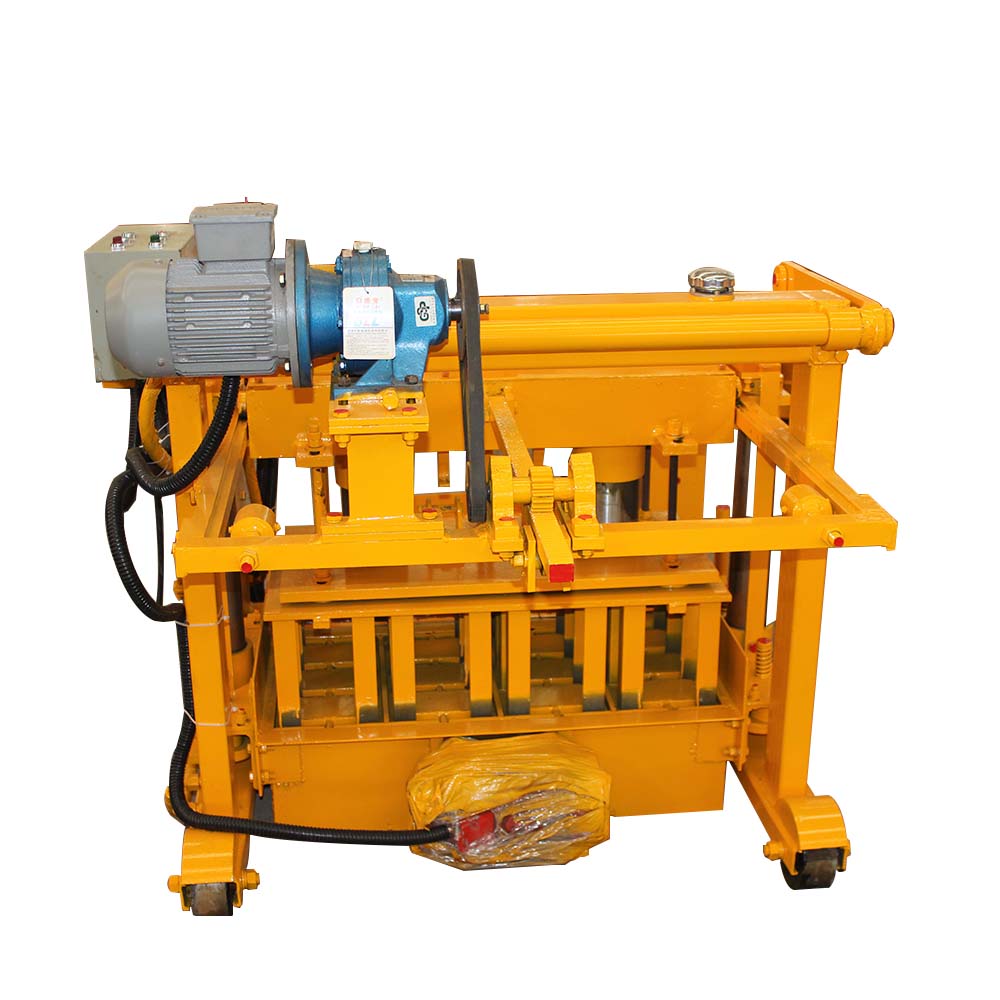

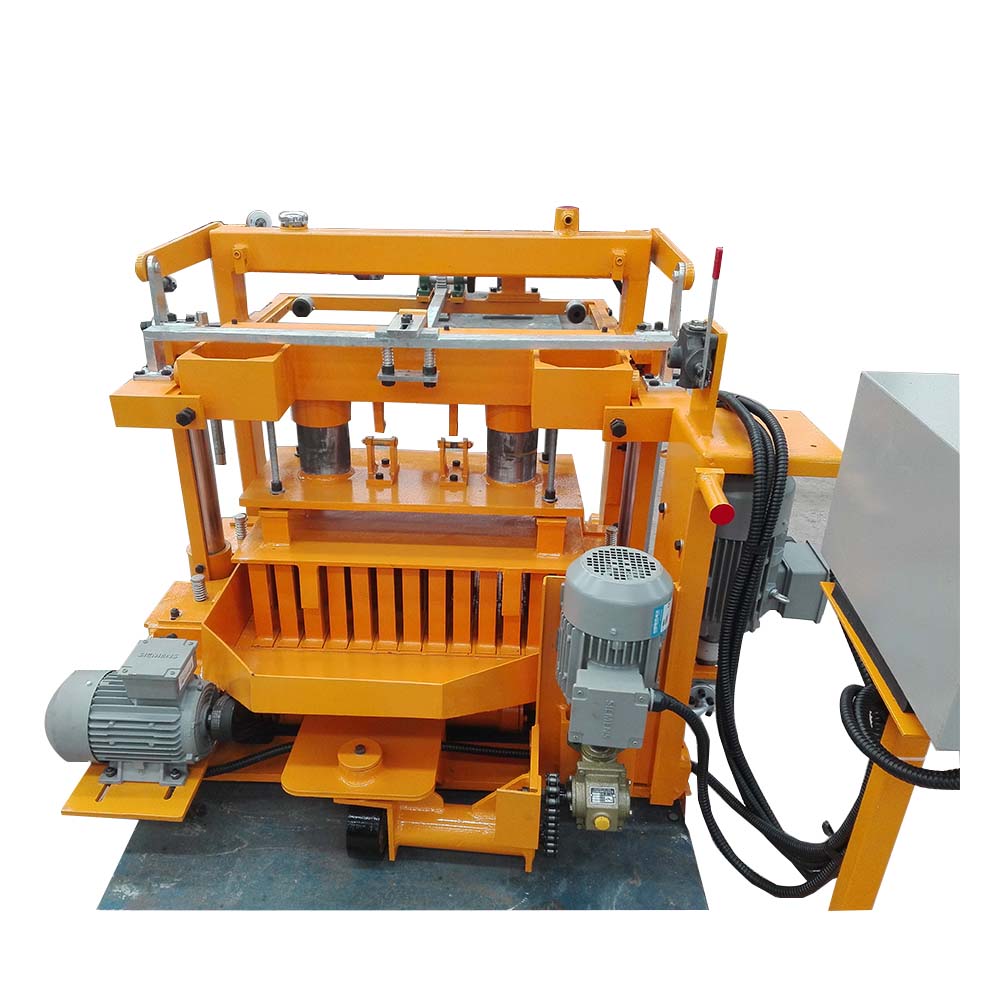

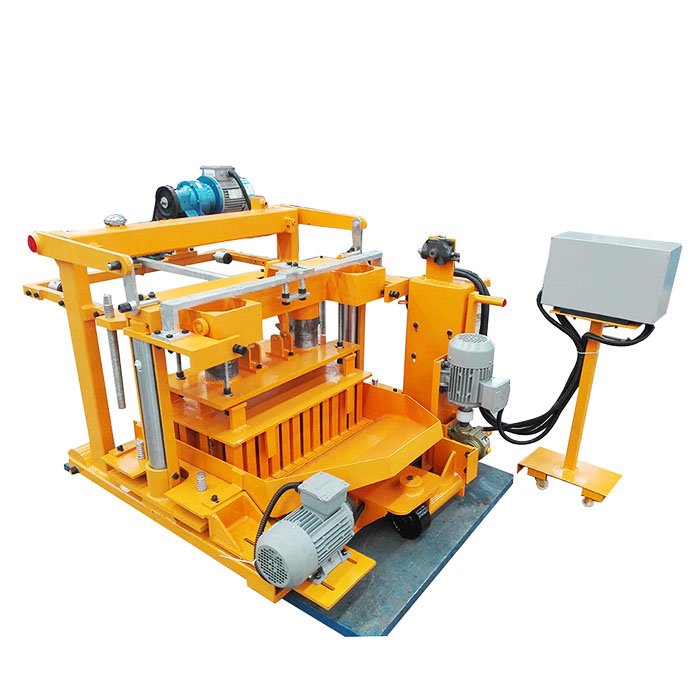

QTF40-3A Egg layer block making machine China, hollow block machine price

Main advantages on block making machine China
1.Europe standard
2.Competitive price
3.Agile operation
4: Competitive hollow block machine price

Send an inquiry


    egg laying block machine

    Germany technology made in China

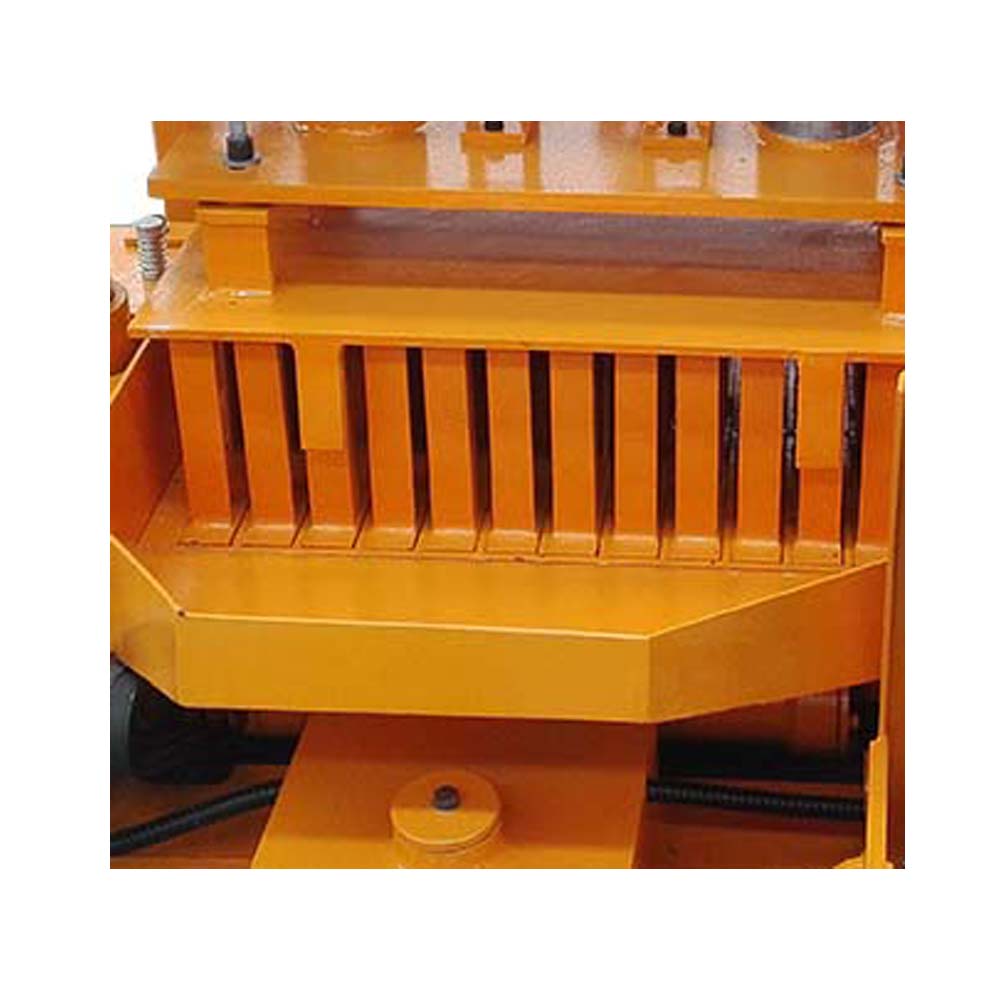

    1. Mould structure: we design the mould structure specially in order to change the mould easily,about the mould lifespan, we use the newst heat treatment equipment to do carburization work, and make the cement bricks making machine mould more stronger. usually we could assure to use 100000 time, in fact it could use more lomg time.
    2. About the electricity motor, in Mixer and hollowblock machineChina host machine, we will use Germany siemens motor, because this two part nearly working all time in working day, so we could use high level hard wearing motor for this, and the motor we will also use CE standard.
    3. About the switches, we will select the France Schneider brand, it is could assure the working process smoothly.
    4. Cementblock making machineChina Control System, Using computer control and man-machine interface. Electrical equipments apply the well-known brands from Japan and Germany, like Japan Mitsubishi. The Control Systems integrates the experience design in the actual production line of the past 20 years, combines with the international development trend, to meet the national conditions. This design can be mastered with the simple training, professional knowledge is unnecessary. And the powerful memory is used for the upgrade.

    Brick samples this machine can produce

    different brick samples this machine can produce

    Technical date

    Cement block making machine China Main Theoretical Data
    Dimension of host machine 1800×1400×1100mm control style Electrical control system
    Forming style Vibration with hydraulic Vibration force 35.5KN
    Vibrator style Mould vibrate Host machine power 5.2KW
    Forming hight 40-250mm Moulding period 25S
    Weight of host machine 0.8T Size of pallet No need pallet
    Voltage 220/240/380/440V
    block machine Line Area Needed
    Workshop 50 m2
    Total area About 800m2
    Worker arrangement
    operate 1 Material loader 1
    Total 2
    Production Capacity
    Size(L x W x H) Pcs/Mould Pcs/Hr
    400X150X200 5 750
    400X200X200 4 600
    400X250X200 3 450

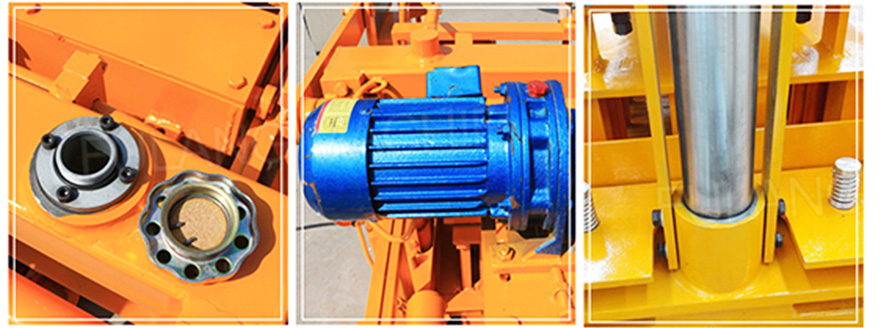

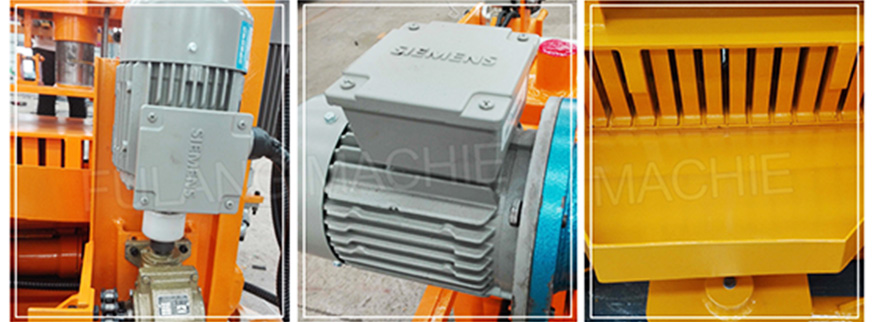

    Brick models machine details show

    hollow brick making machine hollow brick making machine details

    Enginners available

    We have several departments and engineers to help you install the machine and training your workers.

    hollow block machine installation
