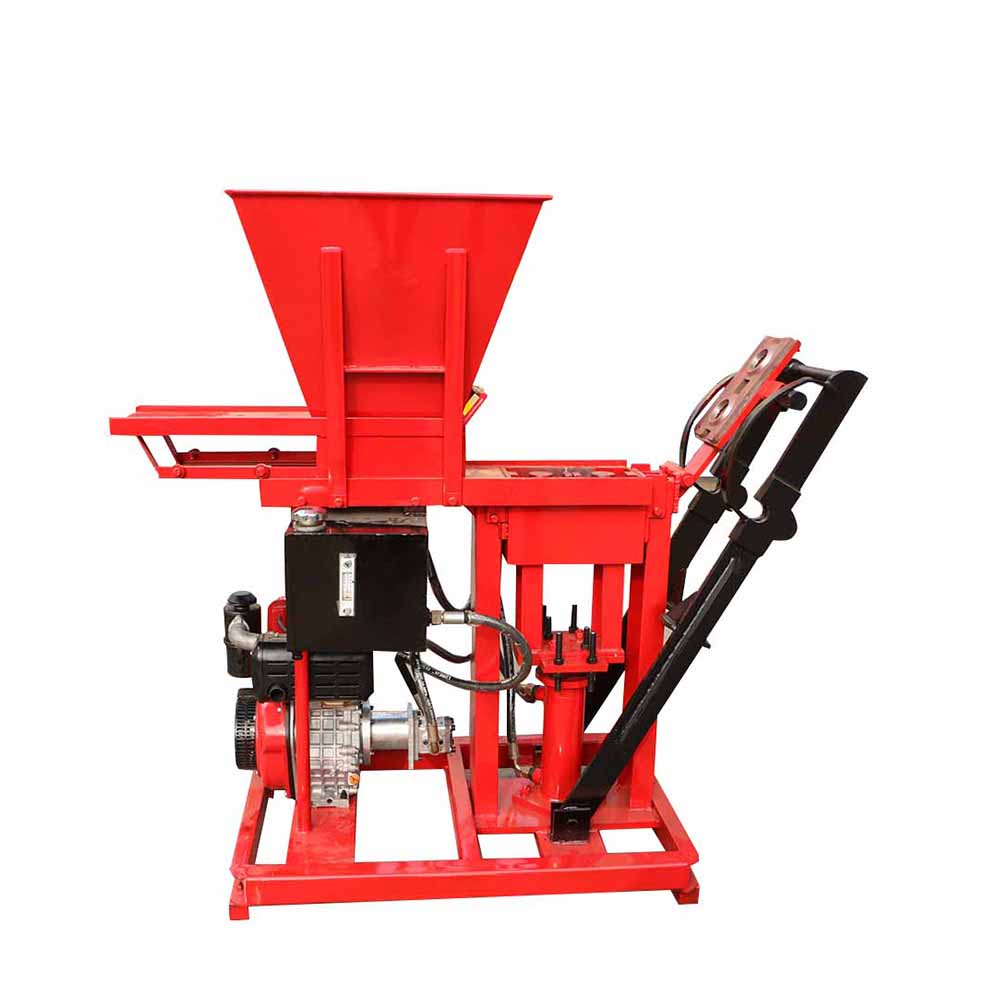

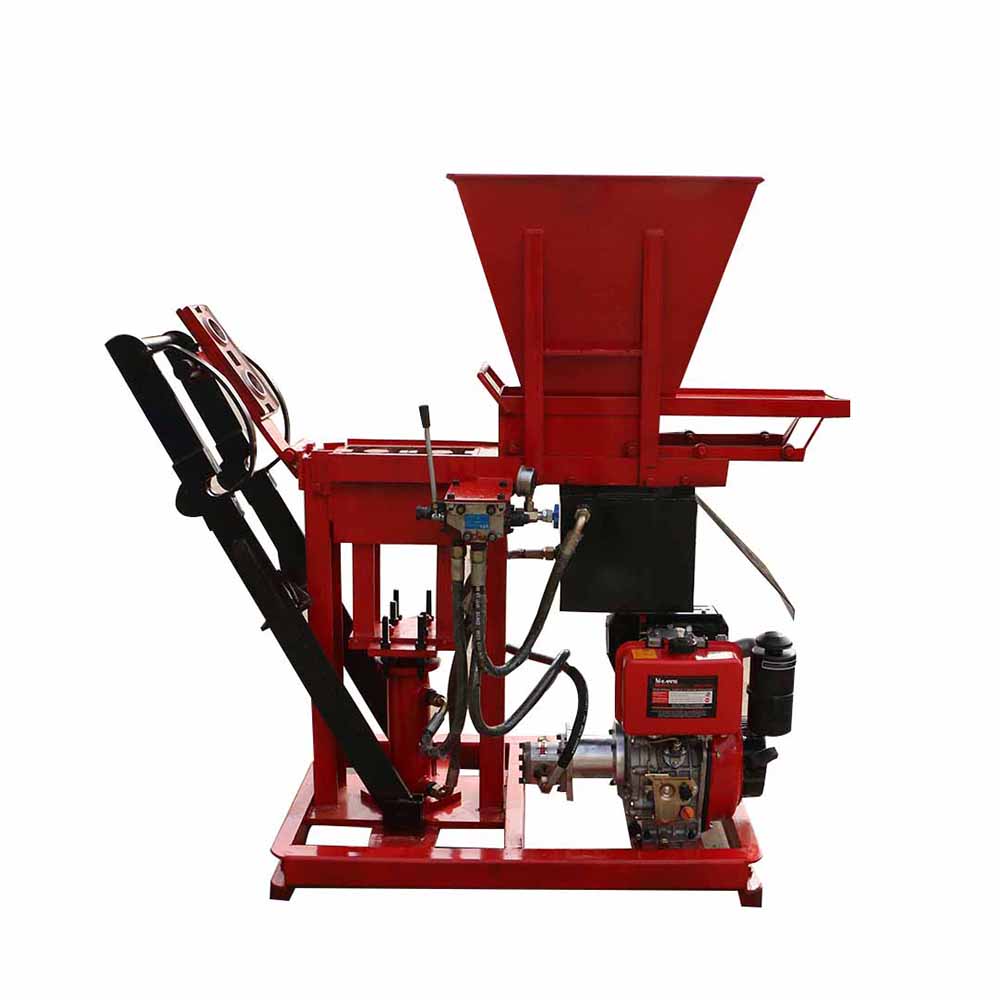

small clay brick making machine

FL1-25 is manual clay interlocking brick making machine, easy to operate, with simple structure and hydraulic pressure, has been hot sale in south Africa.

Send an inquiry


     main advantage of this small brick machine

    1.FL1-25 semi-automatic hydraulic interlocking manual brick-making machine is a small block-making machine, easy to operate, has been widely used in African countries.

    2.Low cost, convenient operation, suitable for small and medium enterprises and individuals.

    3.This machine adopts the electric motor to drive the gear pump, the oil pressure is about 16 Mpa, driving the reciprocating movement of the hydraulic cylinder, the molding and demoulding process can be completed in 12 seconds. In addition, the production capacity of this machine is more than twice that of similar manual brick machines abroad, and the labor intensity is greatly reduced.

    4.The height of bricks can be changed, by adjusting screws on the machine. Besides you can produce different kinds of brick by changing brick mould.

    ▶ Main technical parameters

    Overall size 900(L)*850 (W)*1200(H)mm
    Power 5.5Kw
    Voltage 380V/220V(adjustable to local voltage)
    Shaping period 25s
    Operation pressure 16 Mpa
    Capacity 2600pcs/day
    Pallet no need pallets
    Weight 400kgs
    Labor need 2~3 person
    Material Concrete,earth or clay
    Mould The mould can be customized according to your requirement of brick shape
