FL5-10 soil bricks manufacturing machine

FL 5-10 fully automatic hydraulic interlocking type soil clay brick making machine with big manufacturing capacity popular in Kenya

Send an inquiry

    Description

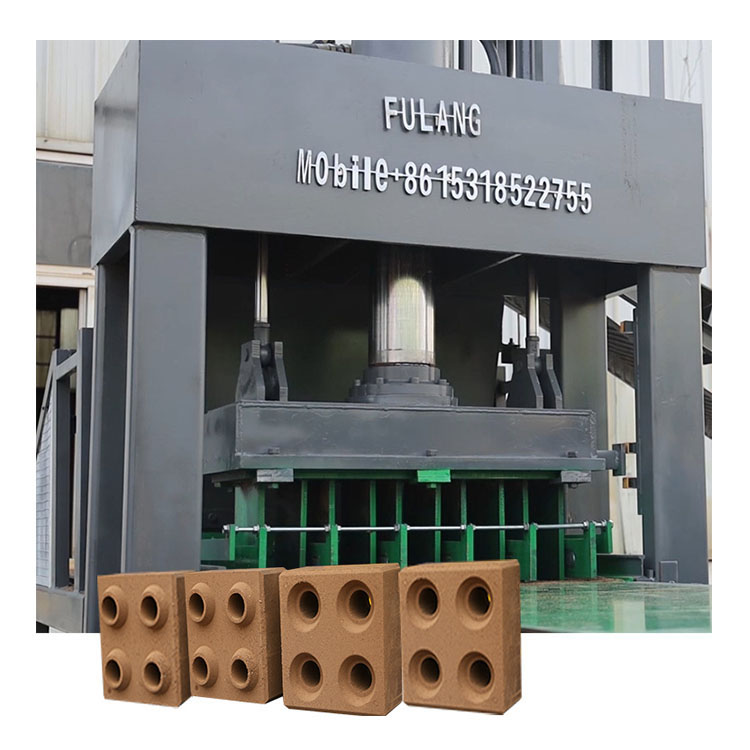

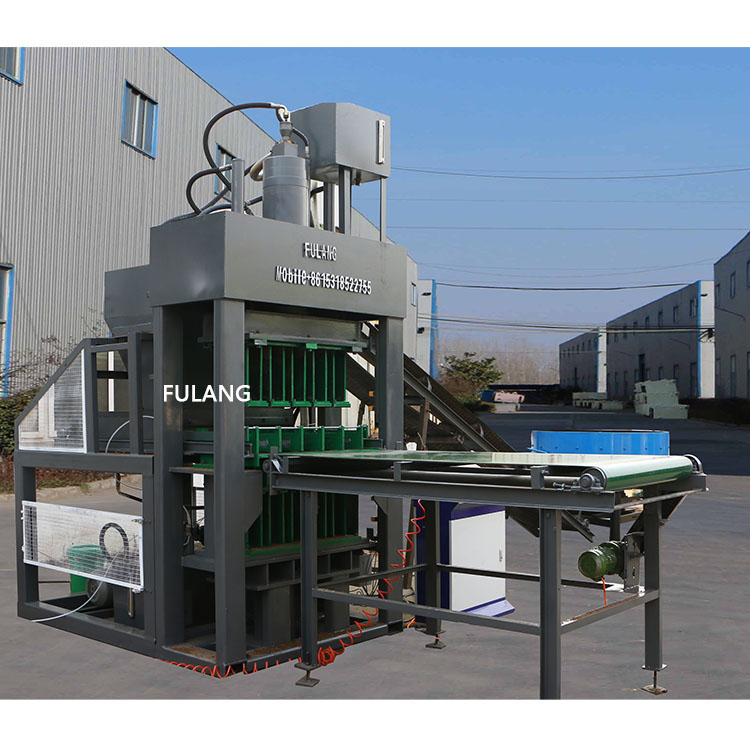

    FL5-10 auto compressed earth block machine

     Main advantage of this clay bricks manufacturing machine

    1. Function:FL5-10 atomatic brick making machine can produce different shapes interlocking bricks by changing mould.Besides, the mould can be designed according to the need of customer.
    2. High production efficiency:This chinese clay fully automatic brick making machine is a high efficient machine and the shaping cycle is 10s. The production can start and finish just by pressing start button, so the production efficiency is high with labor saving, it can produce 14400 pieces bricks per 8 hours.
    3. Advanced technology:Hydraulic pressure molding technology is adopted by this machine, and the pressure can arrive at 60 MPa, so the blocks produced are of good quality, large density and high strength.
    4. High quality mould:The company adopts the most advanced cutting technology and heat treatment technology to ensure product quality and ensure customers’ ease.▶ Technical Parameter
    Dimension 1900*1515*2210mm Weight 3.5T
    Shaping cycle 10s Moulding technology Hydraulic pressure
    Hydraulic pressure 60MPa Voltage Adjustable
    Products Interlocking bricks Worker 3-4 persons
    Mould Heat treatment Certification CE&ISO

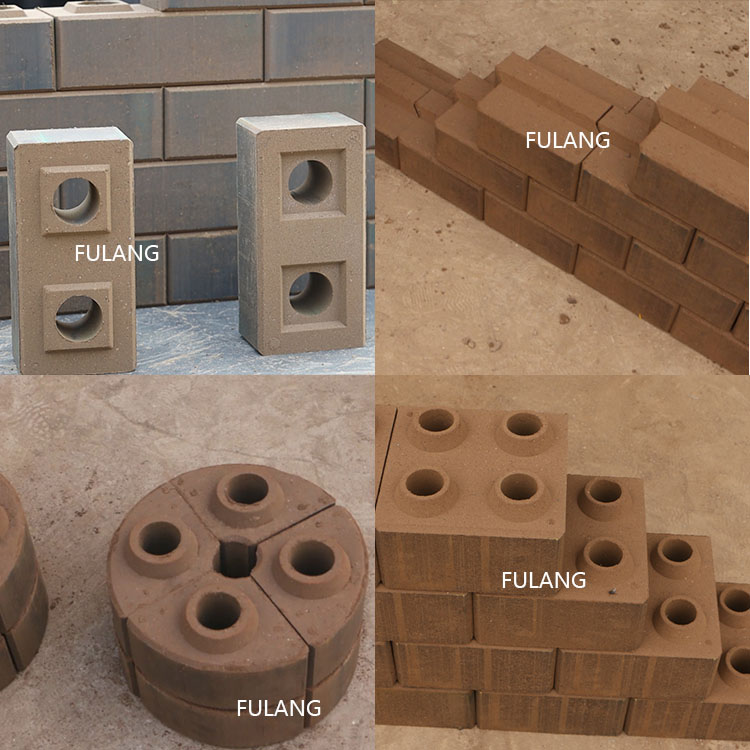

     Different brick samples

    The following is only part of bricks for your reference, if you have other special needs we can customize other brick for you.

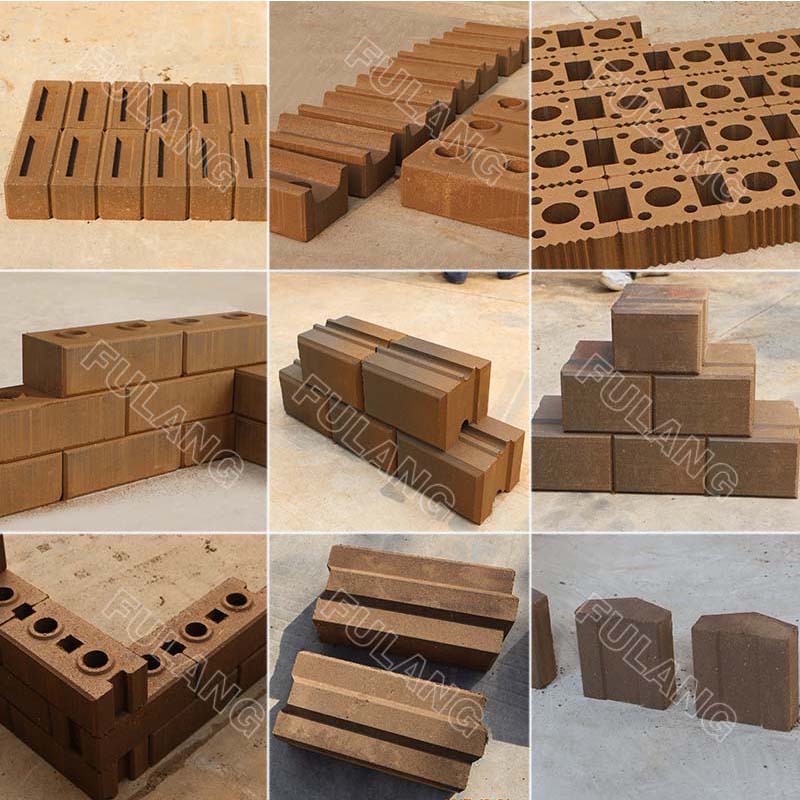

    different compressed earth block samples

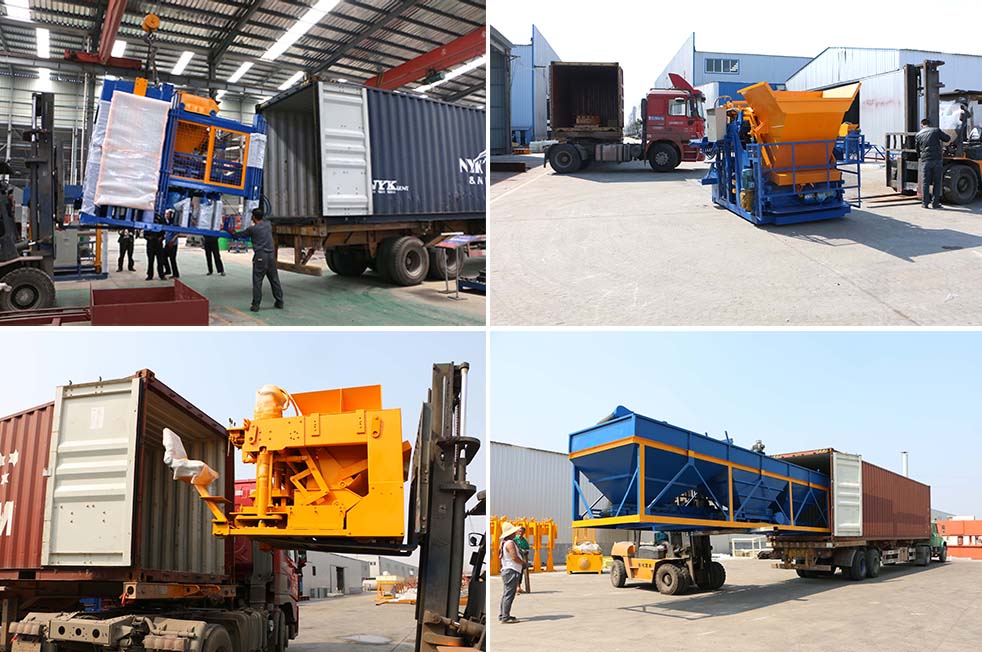

    ▶ Packing and Delivery
