QTF4-24 Concrete cement block machine

1.concrete Cement block machine made in China
2.high output
3.one year service

Send an inquiry

    Description

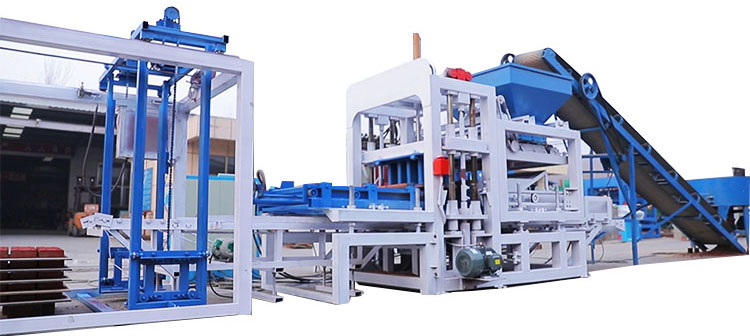

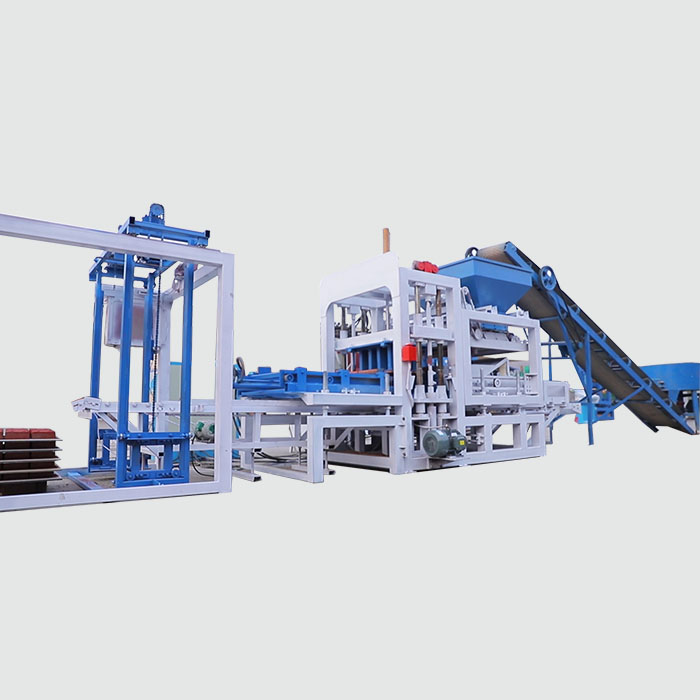

    QT4-24 sand concrete cement block machine cement block machine details

    1. QT4-24 multi functional cementblock machine, is not only capable ofmaking concrete blocks but also suitable for the production of blocks made of fly ash, slag, slag and other materials. This concrete block making machine for sale can make produce a variety of wall block, scale brick, hollow brick, porous brick, simply by changing the mould.

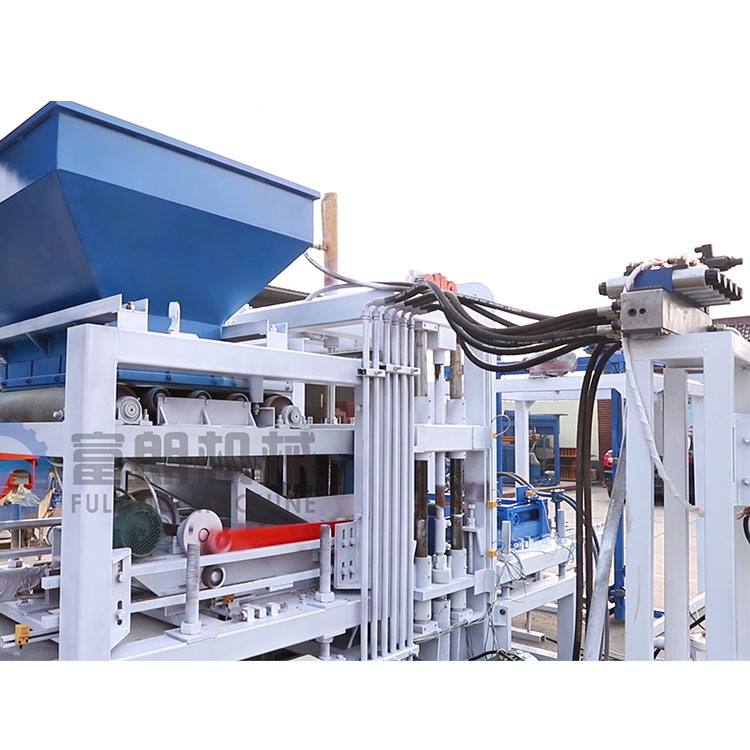

    2. By improving the traditional static bricks making machine, using latest vibration technology and broken arch device, material feeding and mould vibration are controlled separately, the most uniform feeding and shaping optimization are achieved. This manual concreteblock machineadopts mould and table vibration to make the concrete fully liquefied and exhaust in 2~3 seconds, this ensures that the products of high density. So this cement block machine is especially suitable for producing high strength standard brick, the products can be stacked immediately after being formed, lots of money will be saved because you don’t need to buy that many pallets any more.

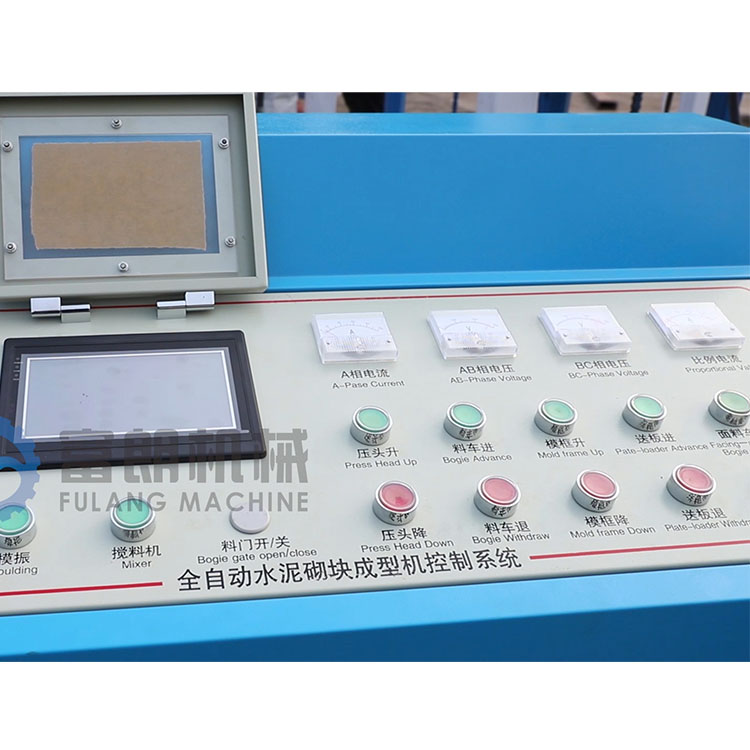

    3. As our most welcomed manual concrete block manufacturing machine line, it has lots of improvement compared to the old static bricks making machine, reliable hydraulic and electricity system, integrated automatic control, easy for the worker to master the operation and maintenance technique. Choose our QT4-24 sand concrete cementblock machinefor sale, you will never regret.
    4. QT4-24 cementblock machine Parameter

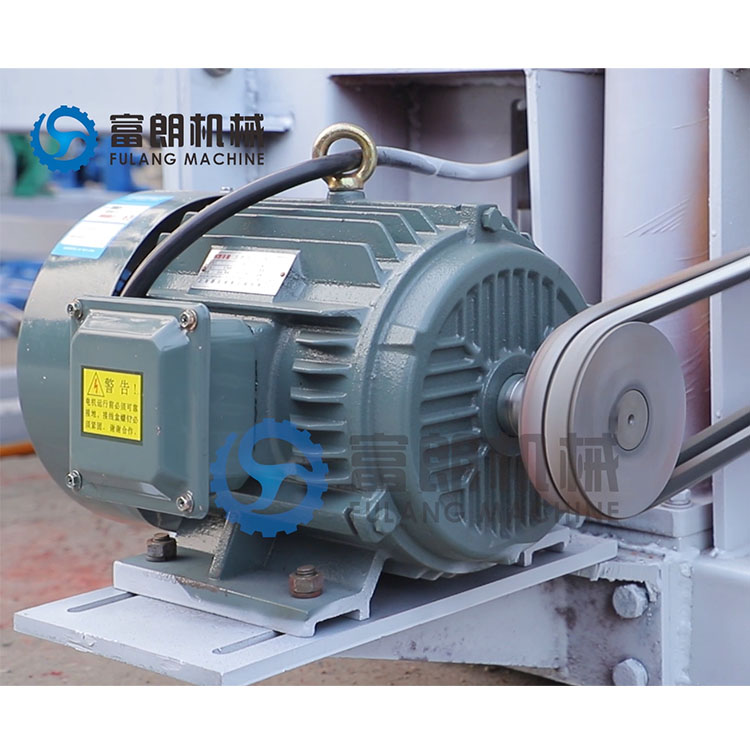

     Dimension of host machine  2060×1730×1850mm  Host machine power  13.45KW
     Molding cycle  24s  Vibration force  35.5KN
     Mould period  30S  Capacity  22.05KW
     The size of the pallet  850×550×30mm  Mixer model  JD350
     Weight of the machine  3T  Voltage 380V/50HZ
    1. QT4-24 brick cement block machine Capacity
     Size(LxWxH)  Pcs/Mould  Pcs/ Hr  Pcs/ 8 Hr
     400X100X200mm  7  630-840  5040-6720
     400X150X200mm  5  450-600  3600-4800
     400X200X200mm  4  360-480  2880-3840
     400X250X200mm  3  270-360  2160-2880
     240X115X 52mm  24  2400-2880 19200-23040
    All kind of hollow and solid block molds can be customized according to your requirement.

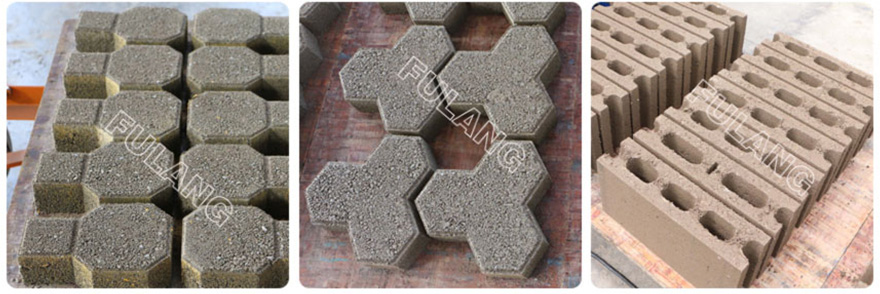

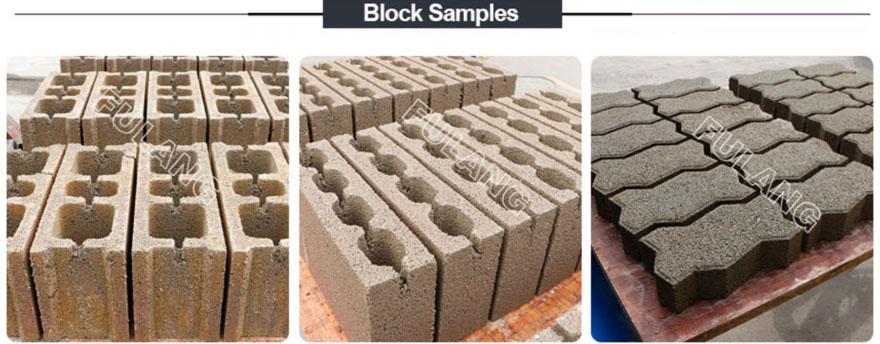

    hollow solid concrete block samples concrete cement block samples different paver block samples

    1. QT4-24brick making machines Advantage
    2. It adopts to the domestic technology of vibration of vibration table.

    And it gets a strong vibration with a little power.

    1. Concreteblock making machinefor sale combines lower die vertical vibration and top die vibration,as a result, and it can produce block more quickly and the compactness and intensity of block is great.
    2. Reasonable design with easy operation release human and get a high efficiency.
    3. It produces various blocks with different molds.
    4. The performance and block quality can compare with large-sized machine
    1. QT4-24 cementblock machine sale in kenya Required area

    work area:50-60m2  3-5 workers

    Total area: 100M2 (theoretically), you can arrange it with your own situation.

    1. QT4-24brick making machine Price Terms
    2. All prices are based on FOB Qingdao, CHINA. MOQ: 1 set
    3. Payment terms: 30% as down deposit by T/T,70% as the balance paid by T/T before loading(L/C is also acceptable.)
    4. Validity: four weeks
    5. Delivery: 15-20 days upon receipt of deposit.
    1. QT4-24 concrete block machine Scale of raw material
    2. 8%-10% cement ,30%-40% sand, 50%-60% stone
    3. 8% cement,60% sand,Fly ash 30%,2% gypsum.
      7. Engineers installation abroad available
