cheap concrete block making machine

Semi automatic fly ash bricks machine
Main advantage of this machine

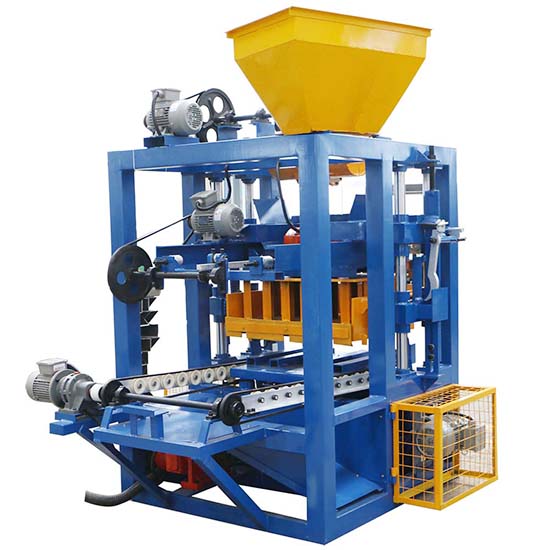

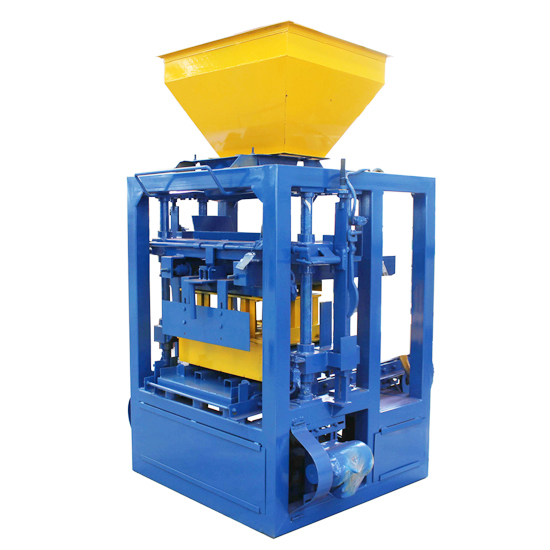

1. QTF4-24 is a semi automatic fly ash bricks machine, and it can produce various different hollow blocks, solid blocks and pavers by changing its mould.

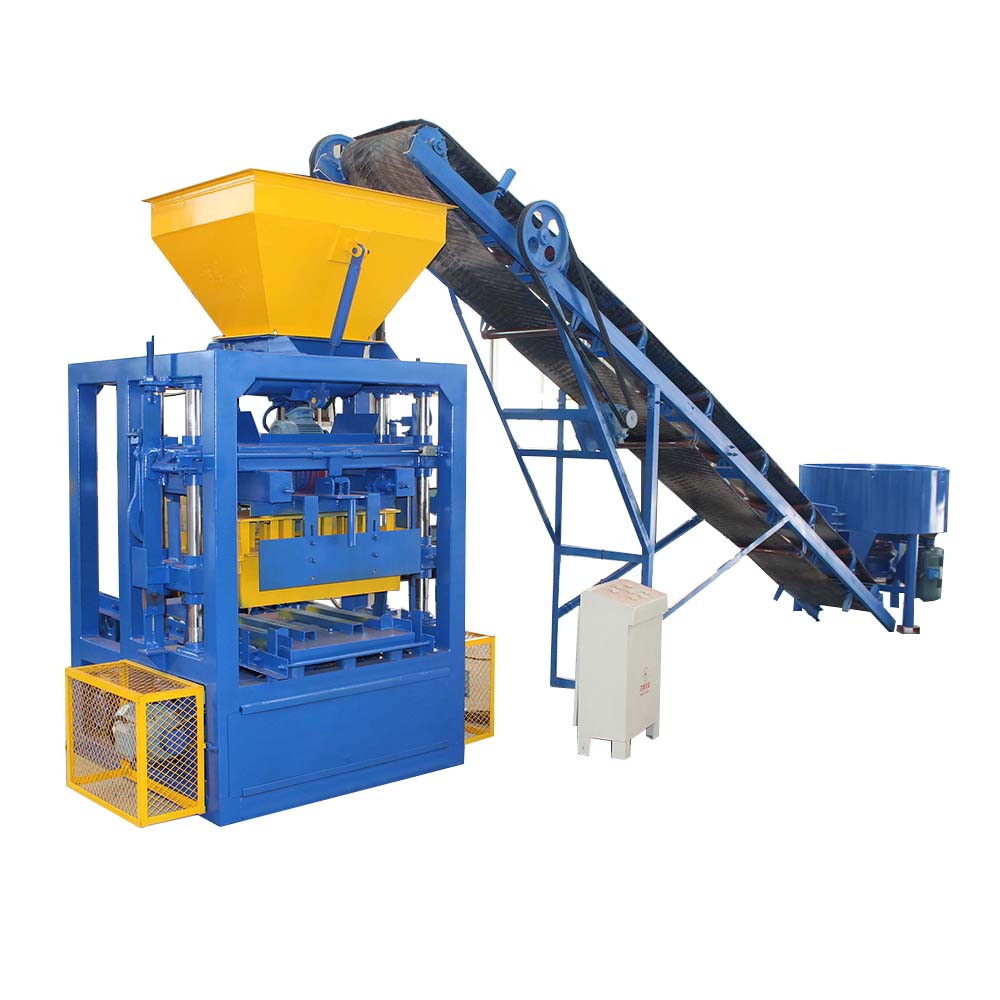

2. The whole production line includes the host machine, conveyor belt, mixer, block trolley.
3. The product raw materials of QTF4-24 can be crushed stone, sand, cement, dust, coal fly ash, cinder, concrete, slag, gangue, gravel, perlite and other industrial wastes.

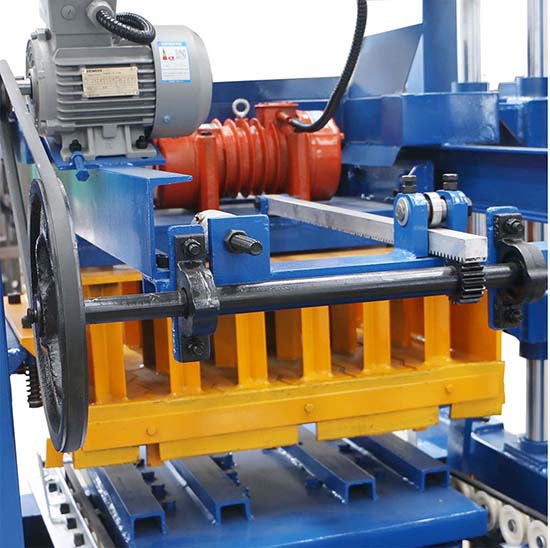

4. Vibrating moulding technology is adopted by YLF4-24 block machine, so the blocks produced are of good quality, large density and high strength.5.Precise line cutting technology and carburizing treatment technology to prolong the service life of mould and increase the precision of the blocks.

Technical Parameter and Production Capacity

Technical Parameters
Dimension  35.5KN
2060*1730*2580mm Vibration force  35.5KN
Weight  3.0T Mould Carburizing treatment
Shaping cycle 24s  Mixer  JQ350
Host machine power  13.45KW  Pallets size 850*550*30mm
Rated voltage  Adapt to local voltage   Products Hollow,solid,paver

Theoretical Production Capacity
Size(L*W*H)     Reference pic Pcs/Mould  Pcs/8 Hours
7 6720
400*150*200mm 5 4800
200*100*60 14 13440
