concrete hollow block machine

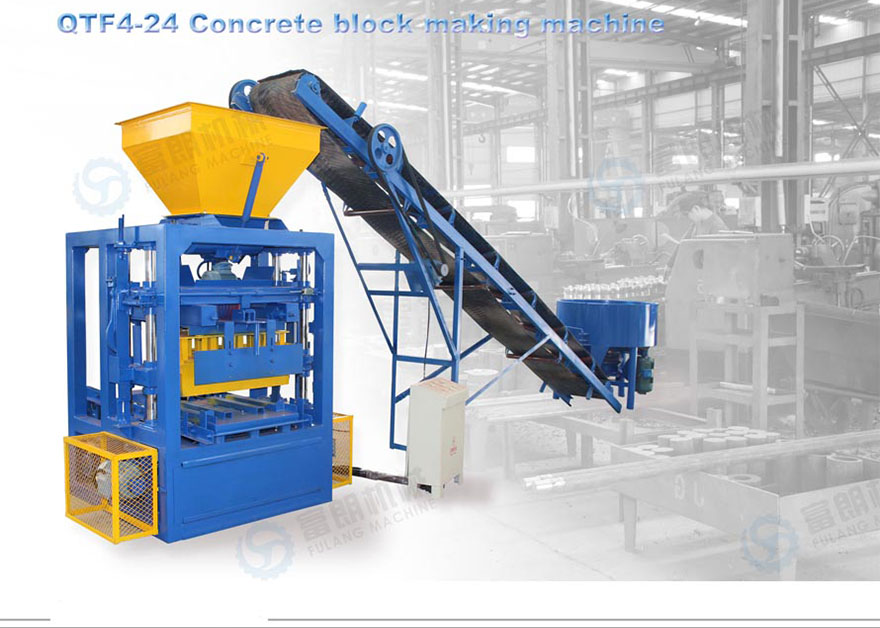

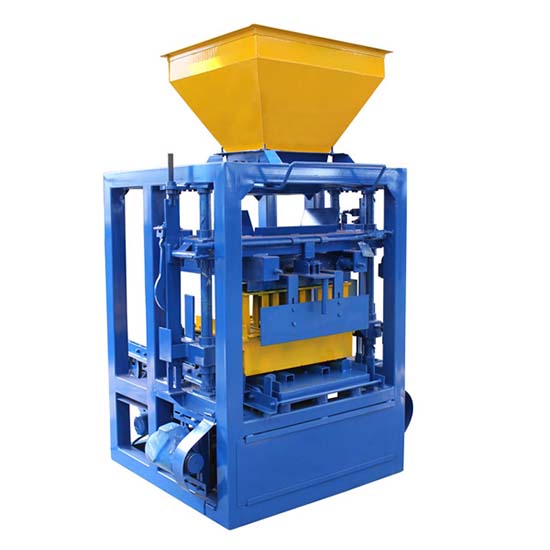

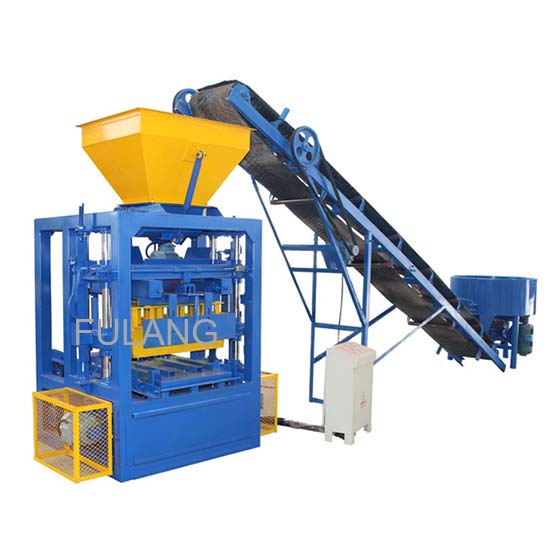

1. QTF4-24 is medium-sized semi-automatic block moulding machine, the main products of this machine is concrete hollow block, and it also can produce paver with different shapes and size,
by changing different molds.
♦ 2. It absorbed advanced foreign machinery technology and created the double-column and double-pressure block forming mode, which is an upgrade from the old version of single column. This machine will have a more accurate positioning of the molds.
♦ 3.This machine combines the vertical vibration and the pressure vibration of the upper mold to make the product form quickly, with high density and uniform strength.
♦ 4. Reasonable design, easy operation and fully automatic feeding system make this machine have high production efficiency and labor saving.

Host machine main technology parameter
Dimension
2060x1730x2580mm
Weight
3Ton
Shaping cycle 24s Vibration foce 35.5KN
Host machine power 13.45KW Mixer model JQ350
Pallet size 850x550x30mm Certification CE&ISO




Production requirement
Area 2000m2                                           Worker
4~6person
Workshop 50m2 Distribution power 22.05KW
Raw material store workshop 300m2 Water consumption 4Ton/day
Office 30m2 Pallet quantity 1200

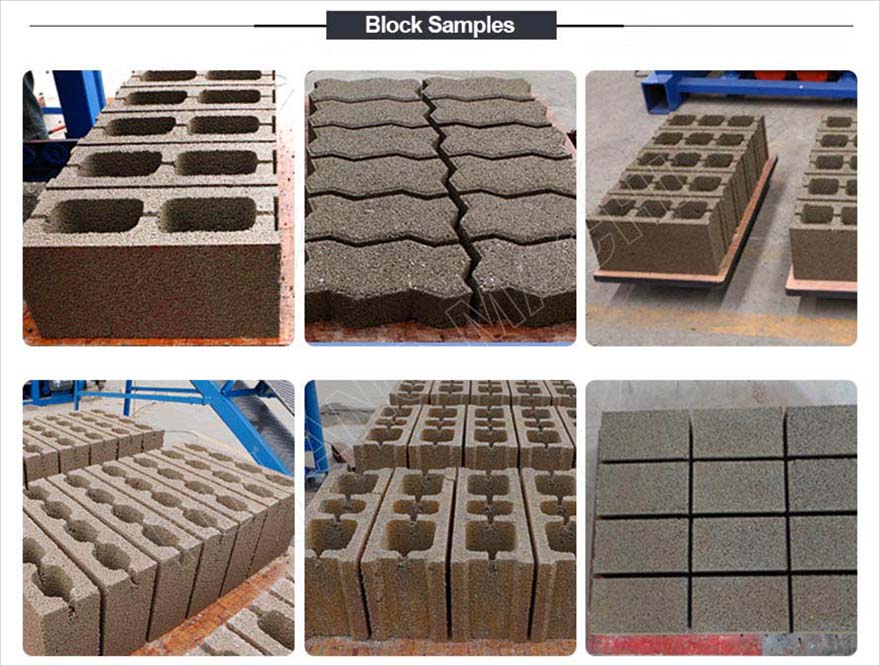

Block samples
The block mold is customizable and you can choose your local popular size and shape. Most of our customers always customize more than one block molds, so that they can produce different kinds of blocks with one machine.
different hollow and solid block samples for your choice
