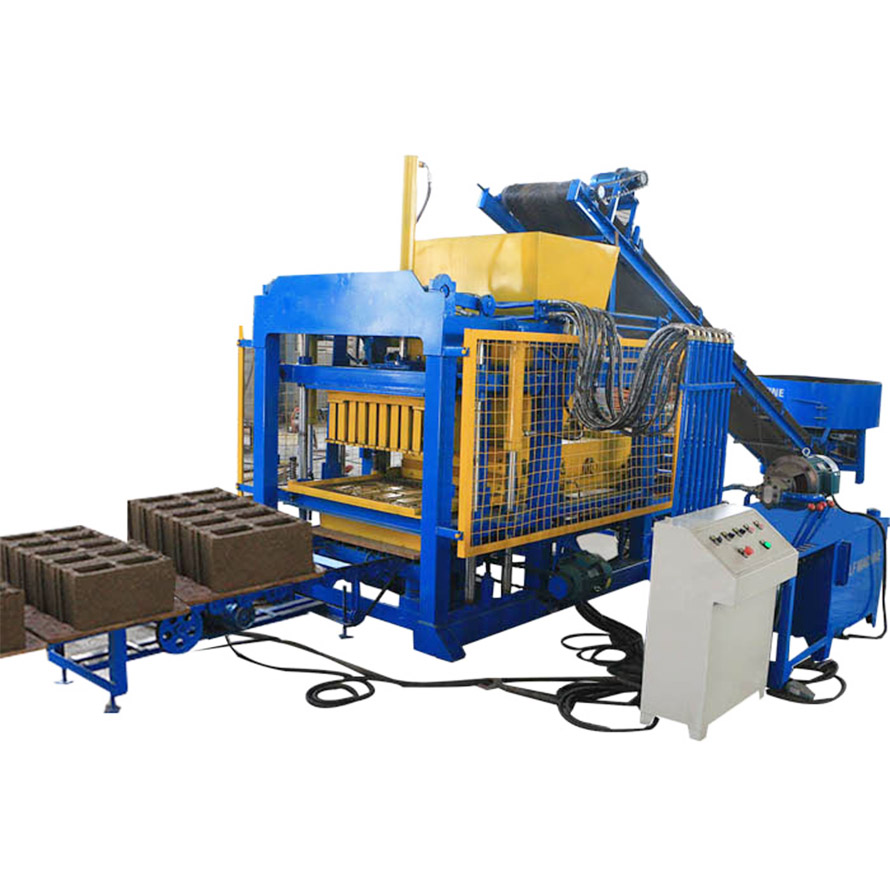

QTF4-25B hydraulic concrete block making machine

QTF4-25C is a semi-automatic hydraulic fly ash bricks, hollow blocks, cinder block making machine

Send an inquiry

    Description


    ► Main advantage of QTF4-25C hydraulic concrete block making machine

    QTF4-25C is a new designed semi-automatic hydraulic concrete China block machine. It’s the upgrade of QTF4-24.

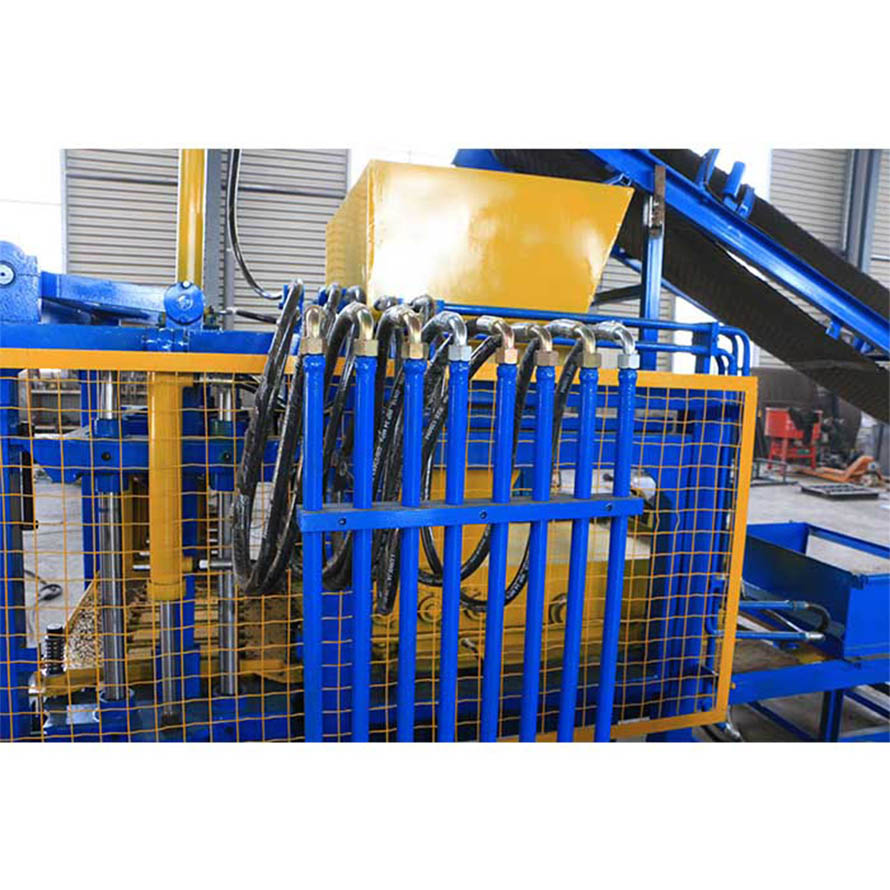

    1.Hydraulic pressure moulding technology.
    2.Semi-automatic design, much cheaper than fully automatic.

    3.It can produce different kinds of hollow blocks, cinder block just by changing mould.

    4.Wire cutting technology and carburizing heat treatment technology.

    5.High production efficiency ( for the size of 400*200*200mm, the production capacity can reach 4608 pieces )

    Technical parameters and theoretical production capacity

    Dimension of host machine 3700*2100*23000mm
    Host machine power 16.35kw
    Shaping cycle 20s
    Voltage Adjustable
    Vibration force 35.5KN
    Weight of the machine 3T
    Raw material Concrete, Sand, Cement, Fly ash
    Applied products hollow, solid and paving blocks, habiterra block, curbstone



    Theoretical  Production Capacity
    Size(L*W*H) Pcs/Mould Pcs/8Hours
    400x100x200mm 7 8064
    400x150x200mm 5 5760
    400x200x200mm 4 4608
    400x250x200mm 3 3456
    230x110x70mm (paver) 20 23040


    ►

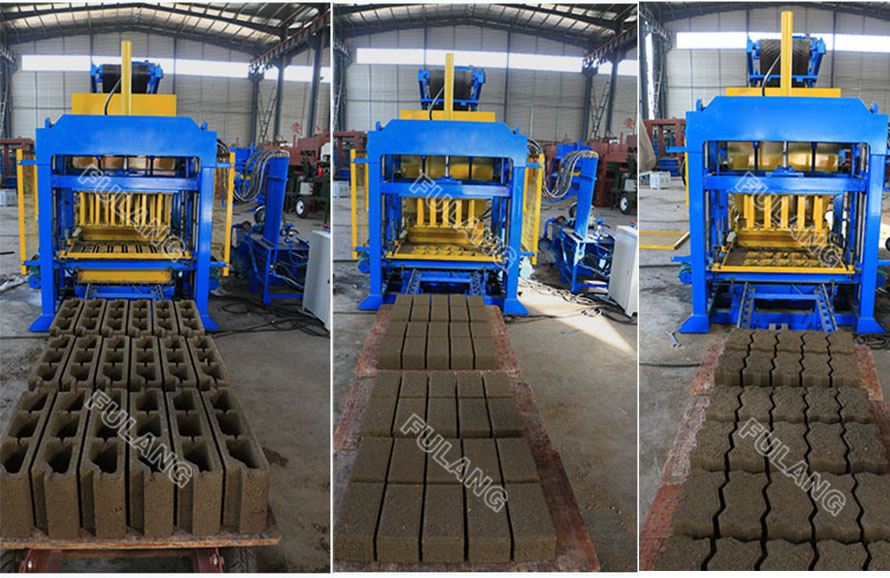

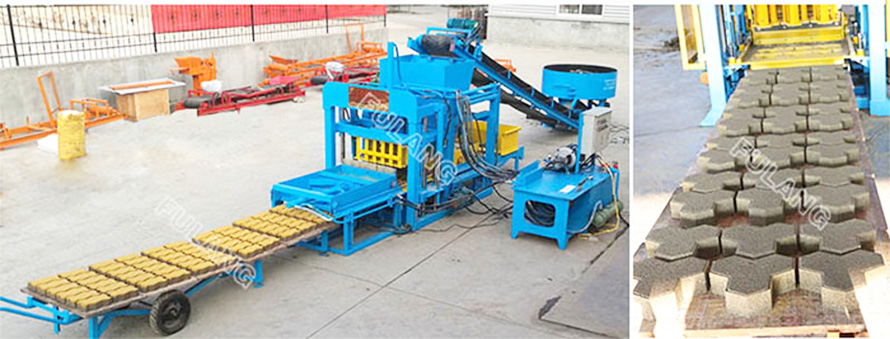

    Different brick samples

    It can produce almost all kinds of hollow and solid blocks. We can also design brick molds according to customer requirements. We have professional engineers to serve you.

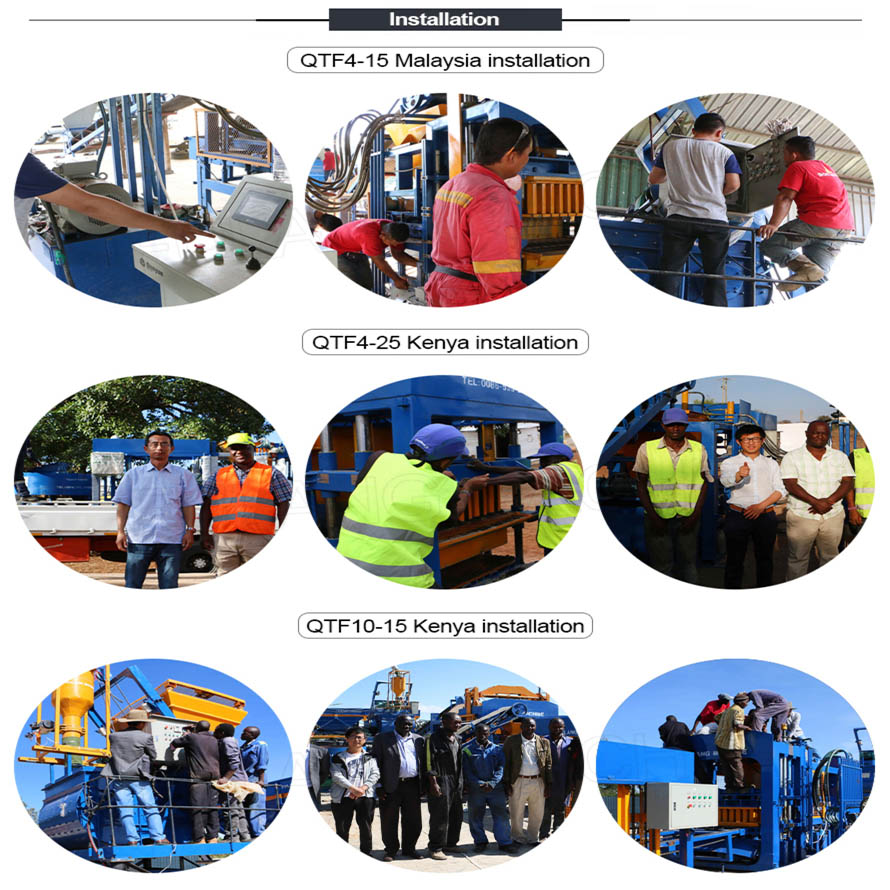

    ► Installation abroad
