fully automatic cement block making machine

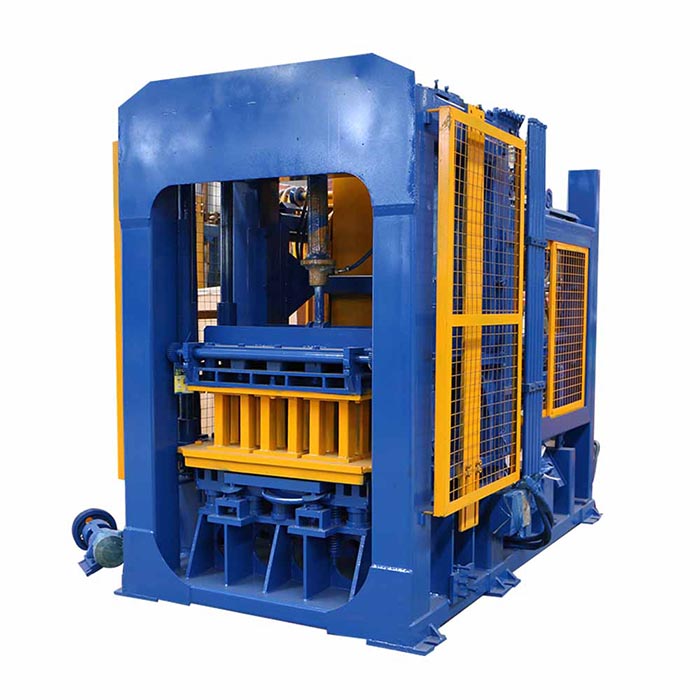

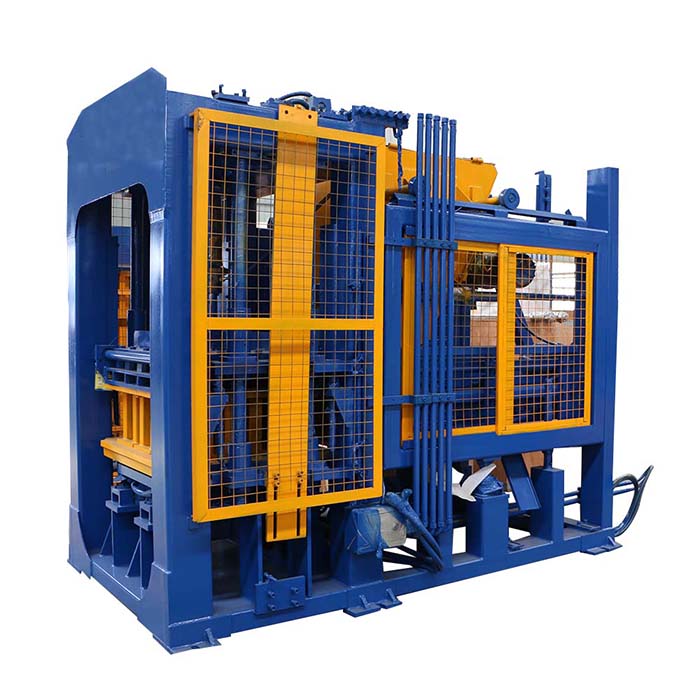

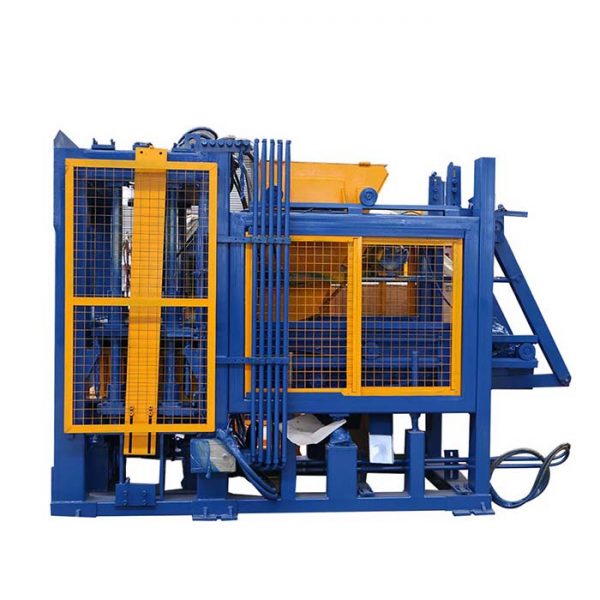

QTF6-15 is a fully automatic hollow block machine with high-end configuration for sale, and we also have many other cover block making machine and brick machine for sale.

Send an inquiry

    Description

    ► Main product advantage

    QTF6-15 is a full-automatic large block brick machine for sale, which has the following advantages:

    1. Hydraulic automatic molding:the molding time is short and only needs 10-15s, which greatly improves the production efficiency and ensures the quality of bricks with hydraulic technology.
    2. Versatility:a single machine can produce a variety of hollow bricks, solid bricks, paving bricks and kerb. The real implementation of a multi-purpose, greatly saving investment costs.
    3. Full-automatic one-line production:real full-automatic production can be realized, which greatly saves labor costs, and the control system of electromechanical integration is simple to operate.
    4. Ultra-high configuration:Siemens motors, schneider electronic control components, mitsubishi hydraulic control system, etc.
    5. Customizable molds:we can design different molds for you according to your special needs.

     Main technical parameter

    Dimension of host machine 3500*1700*2930mm
    Voltage Adapt to your local voltage(adjustable)
    Host machine power 29.1KW
    Vibration force 60-80KN
    Vibration Frequency 50-90Hz
    Shaping cycle 10-15s
    Water consumption 5-10T/day
    workshop area 260m2
    Production capacity 111520-13440 prices/8hours(take the 200*200*200mm as example)



     Different brick samples for this machine

    The following brick shape is only for your reference brick shape, we can customize the special brick shape you need

     Customer visiting
