Soil Interlocking Block Machine- FL1-25

Product name : Soil Interlocking Block Machine
Product No. : FL1-25
Online Inquiry         Email Us

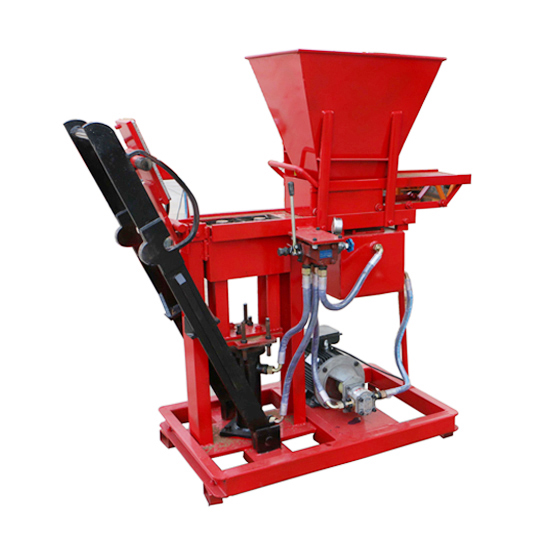

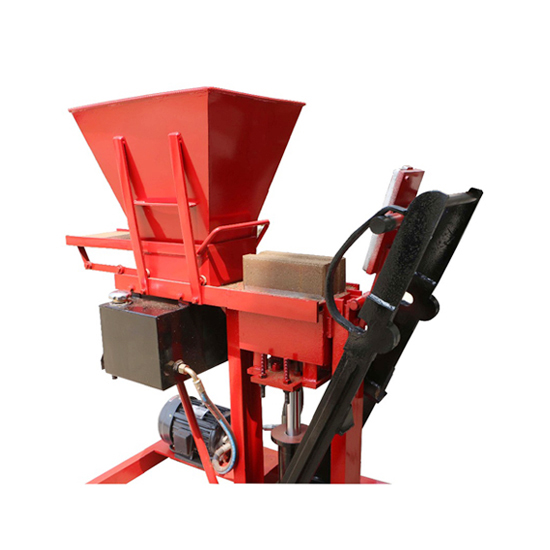

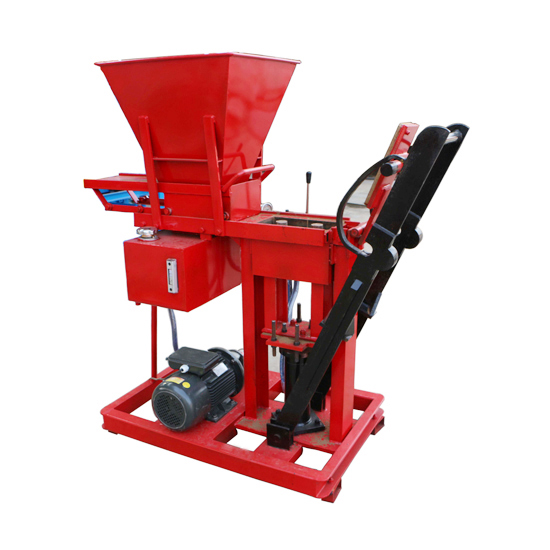

 Hydraulic Soil Interlocking Block Machine
Main advantage of this machine
1.FL1-25 clay brick making machine is powered by electricity, so its production capacity is higher than completely manual brick making machine.
2.As a manual compressed earth block machine, its production capacity is higher than other manual block machine. It can produce 2600pcs/8h.
3.This machine can produce various interlocking brick by changing its mould.
4.The mould adopts both precise line cutting technology and carburizing treatment technology, so the mould has a higher mould precision and longer service life.
5.This machine has a hydraulic system, and its press can reach up to 16MPa.So the bricks are strong and durable.

Technical Parameter and Production Capacity

Technical Parameter
Dimension 1150*450*1350mm Piece/mould 1Piece/mould
Shaping cycle 10-15s Weight 460kg
Motor power 5.5KW Capacity 2600Pcs/8 Hr
Moulding method Hydraulic pressure Voltage Adapt to local voltage
Pressure 16Mpa Block type Interlocking brick









Production Capacity
Size(L*W*H) Picture Pcs/Mould Pcs/8 Hr
300*150*100mm 1 2600pcs
300*150*100mm 1 2600pcs
150*150*100mm 2 2600pcs













Packing and Delivery
