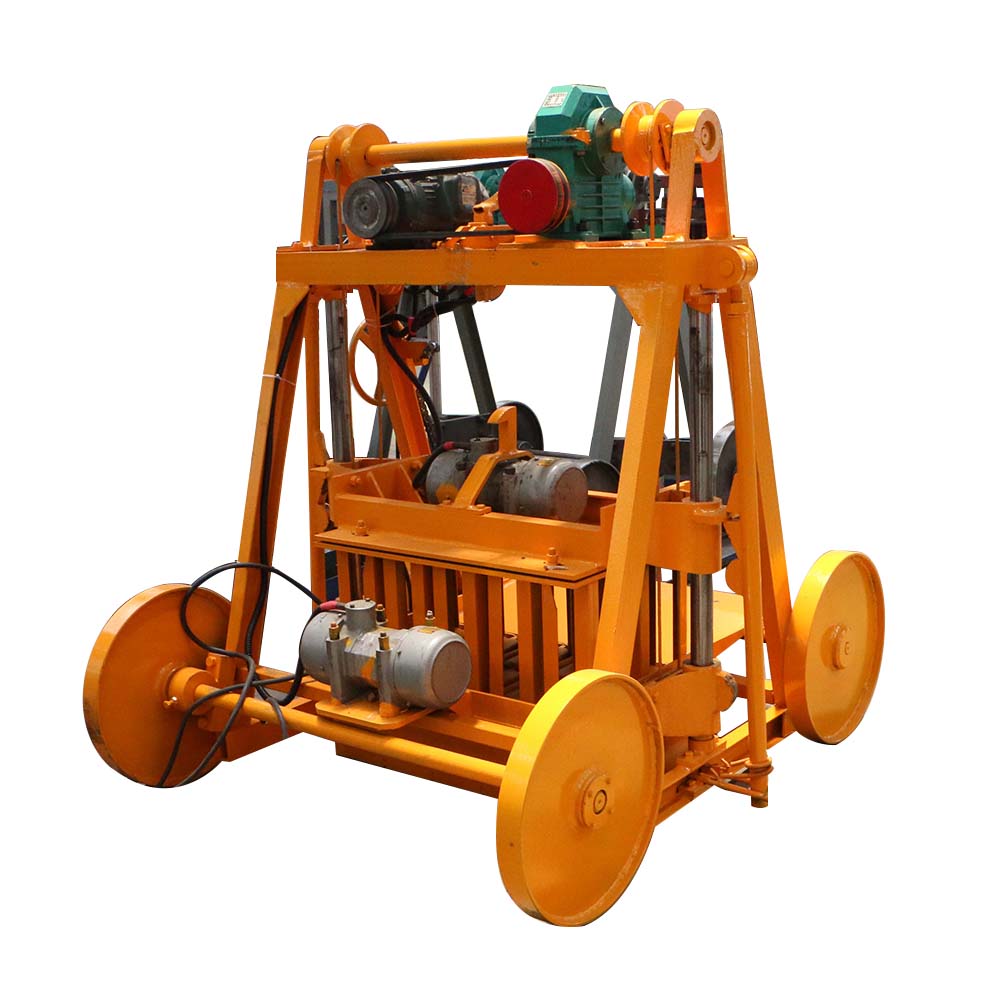

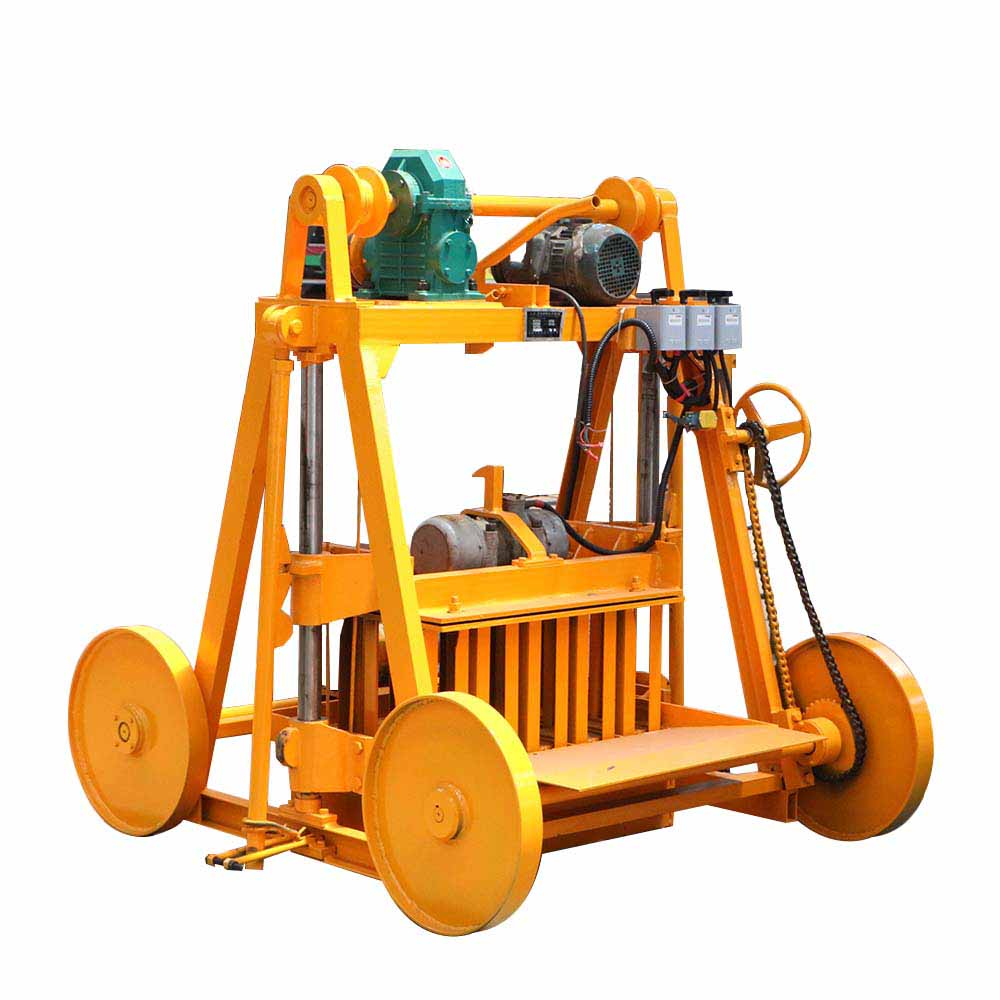

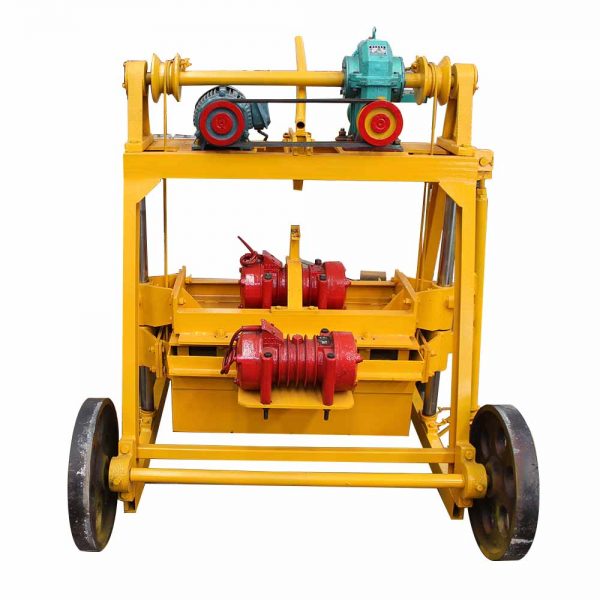

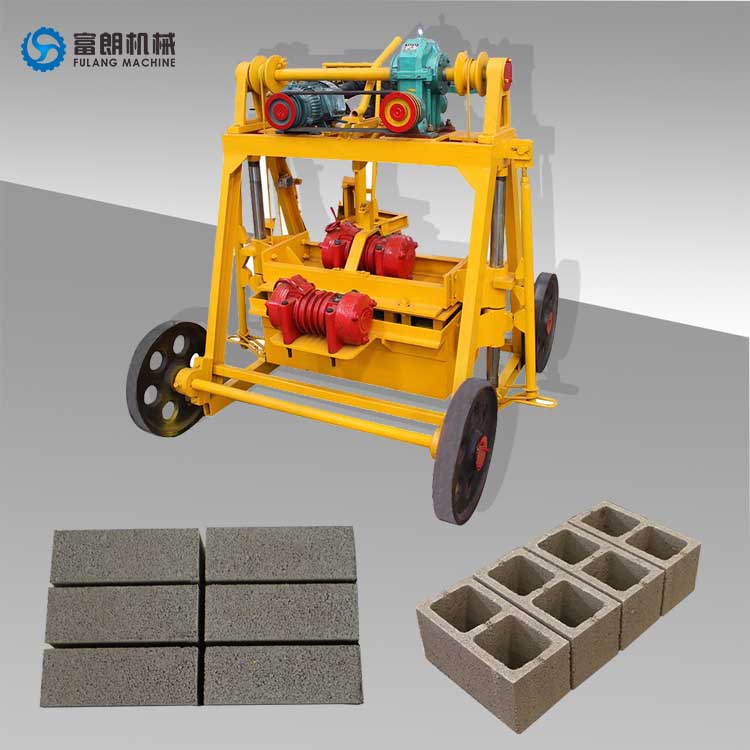

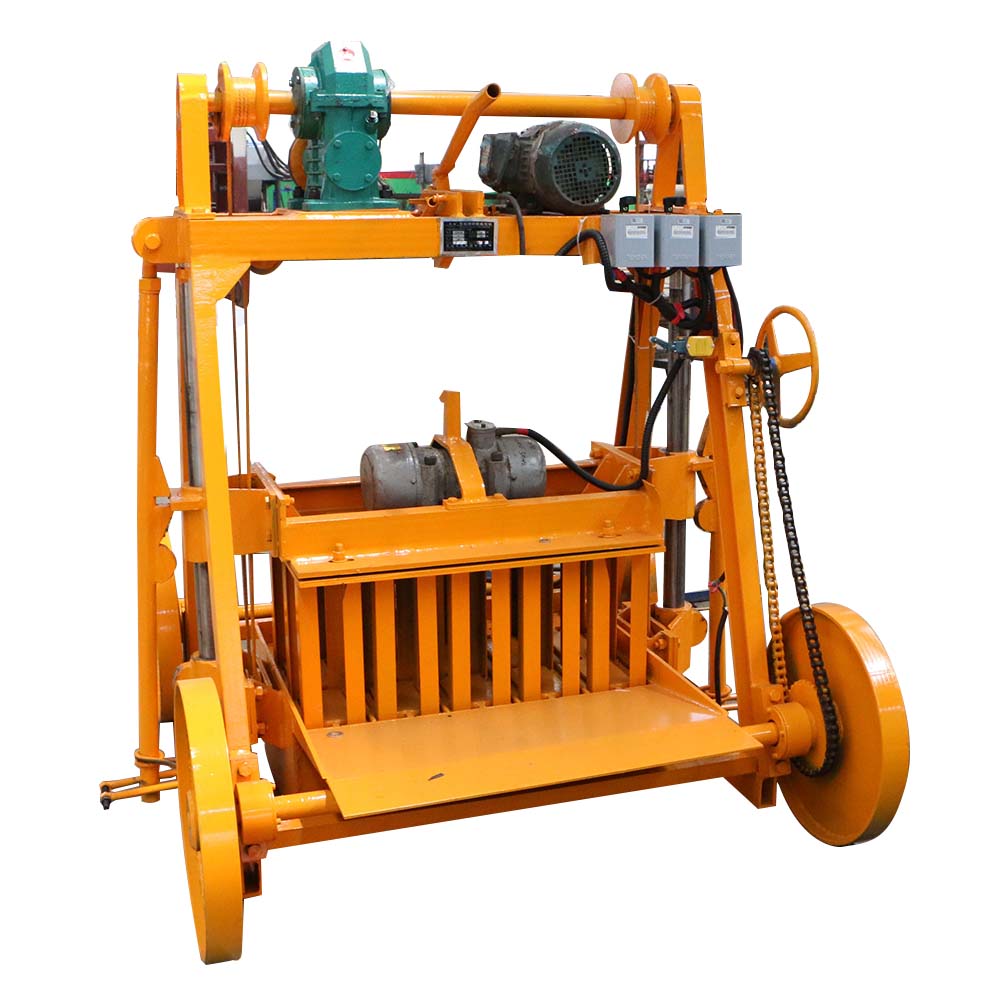

Small mobile cement block making machine


Main advantage of this machine

1. The QT40-3B cement block making machine is excellent in performance, high in efficiency, and lower in energy consumption.
2. Since putting into the market, good economic profits and social benefits have been achieved.
3. QTF40-3B,manual brick makig machine, is a cement block making machine. This small block making machine can producing hollow block and solid block just by changing the mould.
4. The producing capacity is1500-3000 pieces block per shift.

5. High quantity end products
6. There are two vibrators vibrating at the same time. so the blocks produced are of good quality, large density and high strength.
7. Easy operation: QTF40-3B cement brick block making machine price is a simple block machine. It need not installation, you can use it by turning on the power directly. You can learn how to operate it quickly by our video.
8. Low investment : The cement brick block making machine price is very cheap. You can get it no more than 3000USD. Furthermore, the movable block machine,that will save the cost to a large extent.

Technical Parameter and Production Capacity

Technical Parameter

Dimension

1350x1300x1650mm

Weight

1100Kgs

Shaping cycle

45s

Vibration force

30KN

Machine power

5.2KW

Mixer model

JQ350

Capacity

3000Pcs

Labor required

2-3

Pallet

No need

Voltage

Customerized










Production Capacity

Size(LxWxH)

Reference Picture

Pc/Mould

Pcs/8 Hour

400x100x200mm

7

3360

400x150x200mm

5

2400

400x200x200mm

4

1920
