Semi automatic fly ash bricks machine- QTF4-28

Product name : Semi automatic fly ash bricks machine
Product No. : QTF4-28
Online Inquiry         Email Us

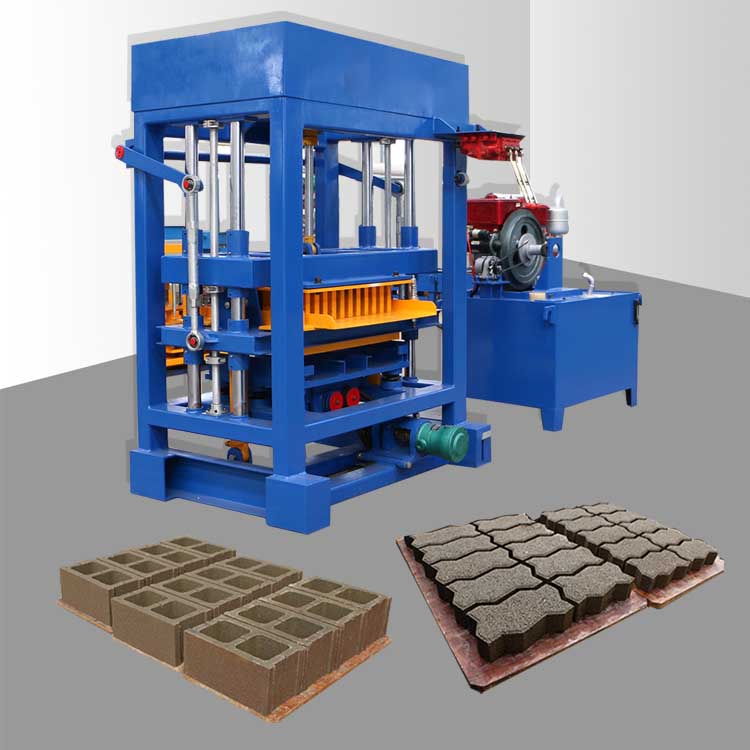

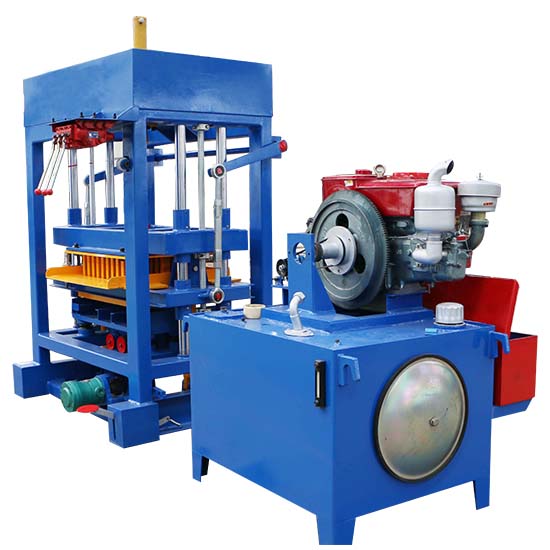

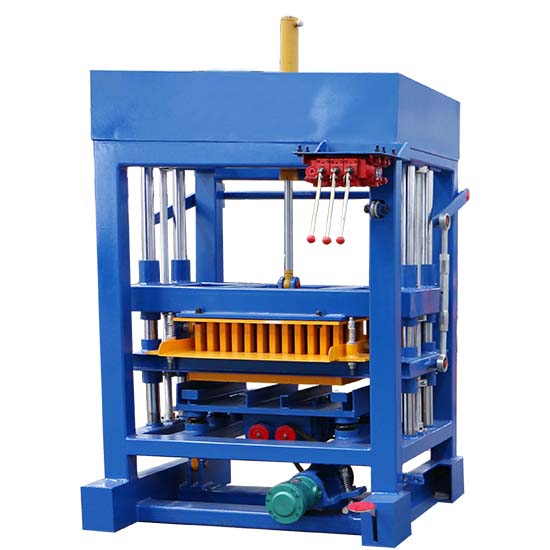

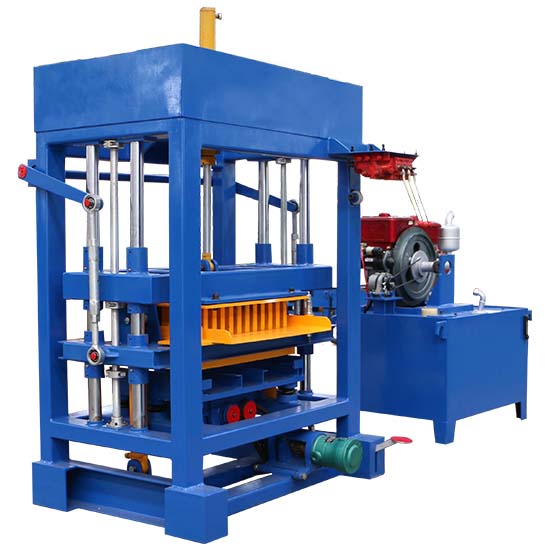

Semi automatic fly ash blocks machine
Main advantage of this machine

1. QTF4-28 is a manual brick machine. It can produce various hollow, solid and paver brick  by changing mold, it is a diesel CHB brick making machine
2. The concrete block making machine brick moulds are made of 16# manganese steel and adopt precise line cutting technology and carburizing heat treatment technology in the process of mould production.
3. The machine adopt hydraulic pressure molding technology to make sure the block machine have a stable running.
4. The brick machine is very low investment,can save cost quickly,is the ideal choice for small and medium factory.

Technical Parameter and Production Capacity

Technical Parameters
Dimension 1480*1250*2000mm Oil consumption 2L/H
Shaping cycle 30s Rated pressure 5MPa
Host machine power 3.34KW(18.0HP Mixer model JQ350
Capacity 400*200*200mm 2400pcs/8hr The size of the pallet 850*450*25mm
Dimension of diesel engine hydraulic station 1100*1140*1350mm Diesel engine starting mode Electric start









Production Capacity
 Size  Picture  Pcs/mould  Pcs/8 hour
 400*200*200mm    4  2400
 400*150*200mm    5  3000
 200x100x60mm   14  5888













Customer Visiting
