Paving block making machine- FL150T

Product name : Paving block making machine
Product No. : FL150T
Online Inquiry         Email Us

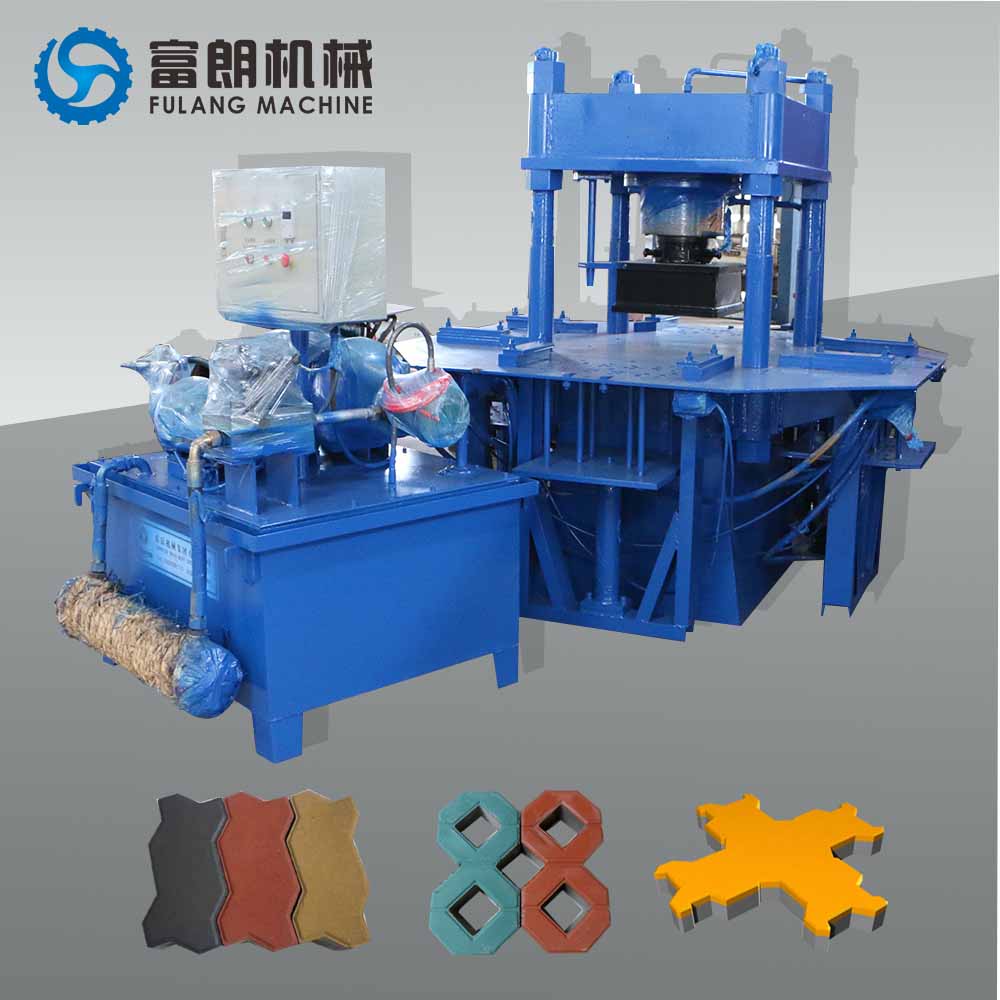

Paving block making machine
Main advantage of this machine

1. FL150T have 4 working positions, it can produce 4 pieces paver at the same time.
2. The production capacity is 2500-3500pcs/8 hours , while only four people are needed to operate the equipment.
3. It is hydraulic press machine, the pressure can be reached to 150ton,which can make sure the good density of paving blocks.
4. The mould use precise wire cutting to reduce error and carburizing heat treatment to prolong its service life.
5. The machine does not need installation, it can start to produce after connecting with power. And it can produce different design pavers with color.

Technical Parameter and Production Capacity

Technical Parameter
Dimension 1900*1900*1850mm Weight of host machine 3.6T
Cylinder diameter 250mm Max pressure 15Mpa
Host machine power 14kw Mixer model JQ350
Hydraulic force 150 ton The size of the pallet No need
Workshop 60㎡ Voltage Adapt to local voltage









Production Capacity

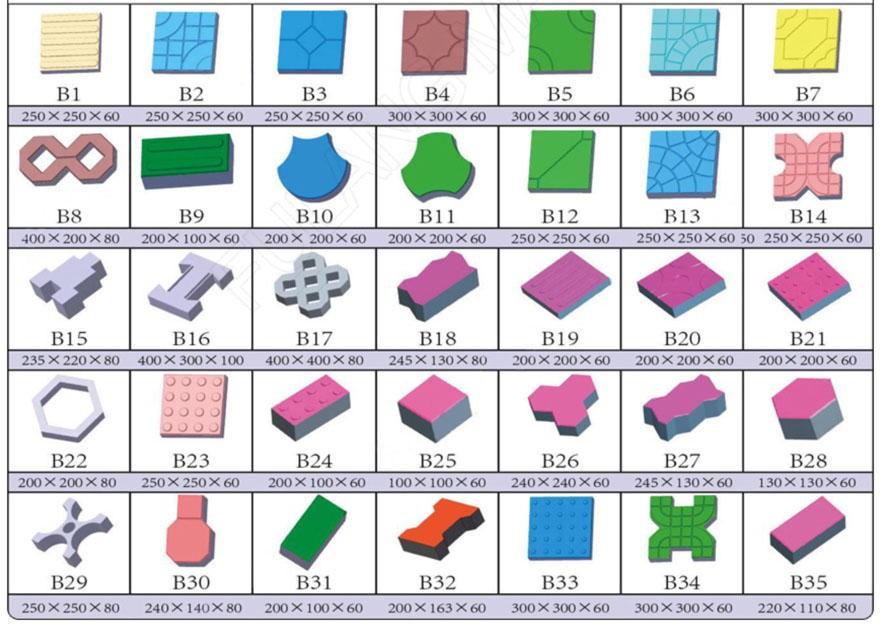

Size Picture  Pcs/mould  Pcs/8 hour
300x300x50mm    1  1500-2000
300x300x50mm    1 3000-4000
