Hollow Block Making Machine,Concrete Block Machine,Concrete Paver Machine

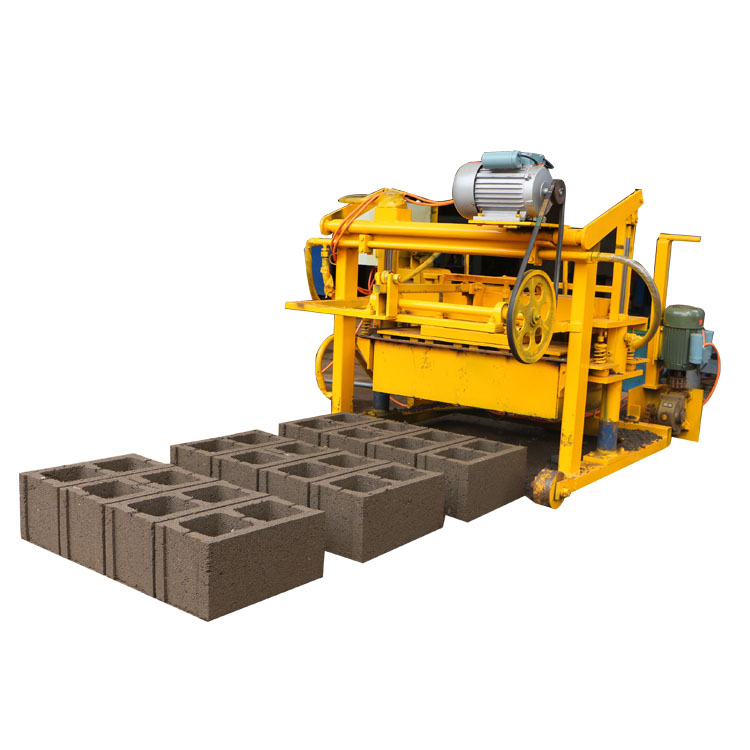

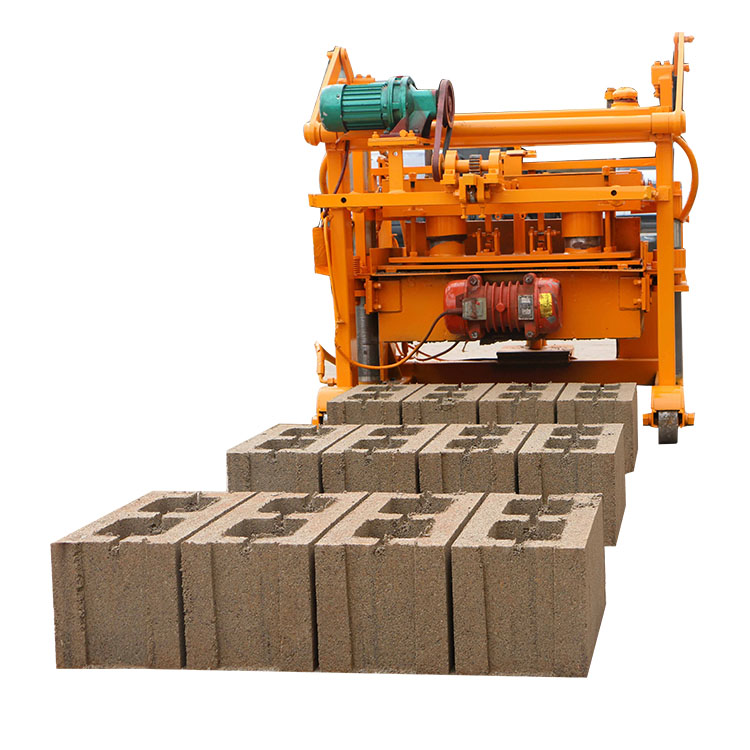

Mobile Concrete Block Machine- QTF40-3A

Product name : Mobile Concrete Block Machine
Product No. : QTF40-3A
Online Inquiry         Email Us
1. Funtion

QTF 40-3A ash bricks making machine can produce various concrete bricks by changing mould(Min. height 110mm)

2. High quality mould

Our moulds adopt precise line cutting technology and carburizing treatment technology to assure longer mould life span and increase the block mould precision, so the brick moulds have better performance and longer service time.

3. High quality material

small block making machine QTF40-3A is made of high-performance steel Q345 selected according to international CE standard. Thus it has advantages in high toughness, wear and tear resisting and high strength.

4. Low investment and  high returns

QTF40-3A is a egg laying block machine, so it doesn’t need pallet, then you can save cost largely.


QTF40-3A ash bricks making machine is a nice choice to start a small and medium-sized enterprise and individuals.


Technical Parameters
Dimension of host machine 1800*1400*1100mm Workers 1~2
Mould Period 30s Total weight 1100kg
Power 5.2Kw Pallet  No need pallet
Voltage Adapt to your local voltage Products Hollow block, solid block
Forming method Vibration Raw material Crushed stone, sand, cement, dust and coal fly ash,
cinder and other industrial wastes


Theoretical Production Capacity
Size(LxWxH) Picture Pcs/Mould Pcs/8h
400x100x200mm 7 5040-6720
400x150x200mm   5 3600-4800
