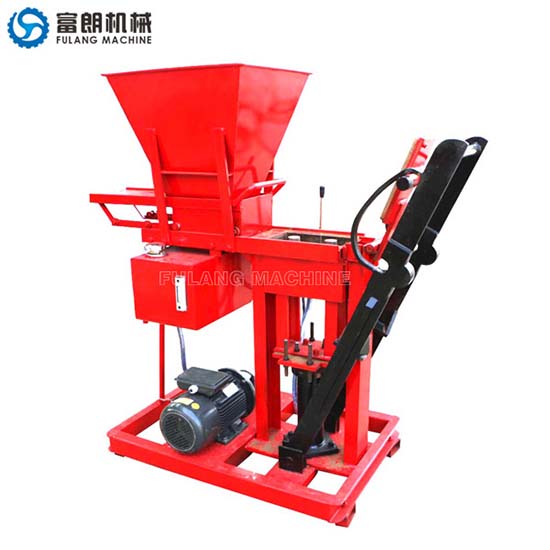

Manual Compressed earth block machine,kenya soil cement interlocking brick making machine- FL1-40

Product name : Manual Compressed earth block machine,kenya soil cement interlocking brick making machine
Product No. : FL1-40
Online Inquiry         Email Us

FL1-40 hydraulic manual interlocking brick making machine is our newest  eco brick making machine.It is also called manual compressed earth block machine, in other words: CEB machine, do not need any power, is very suit to where there is difficult to use electricity .

 FL1-40 Kenya soil cement interlocking block making machine use free soil (earth) , 8%-12% cement and water as materials;you need spend very little money on raw materials and earn more on brick selling.

FL1-40 manual compressed earth block machine is quick in brick forming, use manual pressure so is high in brick density and strong in press strength.

FL1-40 kenya soil cement interlocking brick making machine can produce different kinds of interlocking brick by changing mould.



Main Technical Parameters

Diemension

600*400*800mm

Moulding Area

300*150*100mm

Host Machine Power

Hand operated

Vibration force

No

Mixer Model

JS350

Water Consuption

1T/Day

Moulding Period

30s

Pallet Size

No

Weight

230KGS

Volatge

No

Production Capacity

Model


Size

Pcs/Hour

Pcs/Shift

1



250x125x75mm

120

960

2



250x125x75mm

120

960

3



250x125x75mm

120

960

Total area need

Raw Material

              15m²

Stacking

 20m²

Working shop

              15m²

Curing Room

 30m²

Labor Need

Raw material

 1

Host Machine





Labor Need     1 or 2 Person
