Fully automatic fly ash bricks machine- QTF10-15

Product name : Fully automatic fly ash bricks machine
Product No. : QTF10-15
Online Inquiry         Email Us

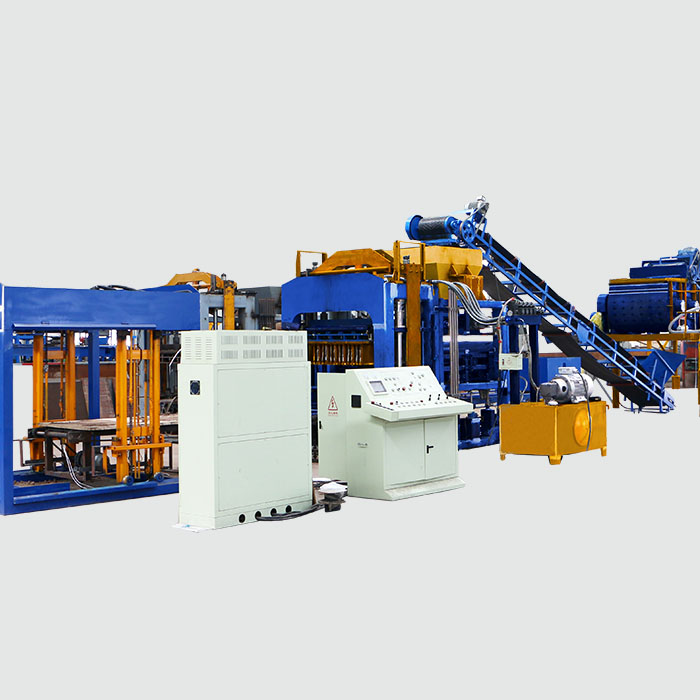

Full line main components

1.Host machine  2. PCC control   3. Hydraulic station  4. JS750 mixing concrete mixer  5. PLD1200 batching plant    6. Automatic stacker    7. Color material feeding machine

Product Introduction

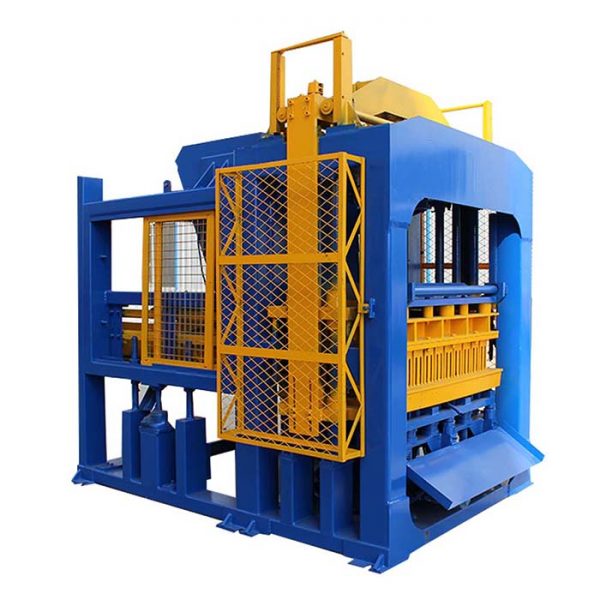

1.Host machine
All material and spare parts selected according to international CE standard,Carbon dioxide protection welding will assure whole line stable running.
2.Motors
Using national famous brand motor,can be customized with Siemens and ABB brand.Voltage can be made according to your local voltage

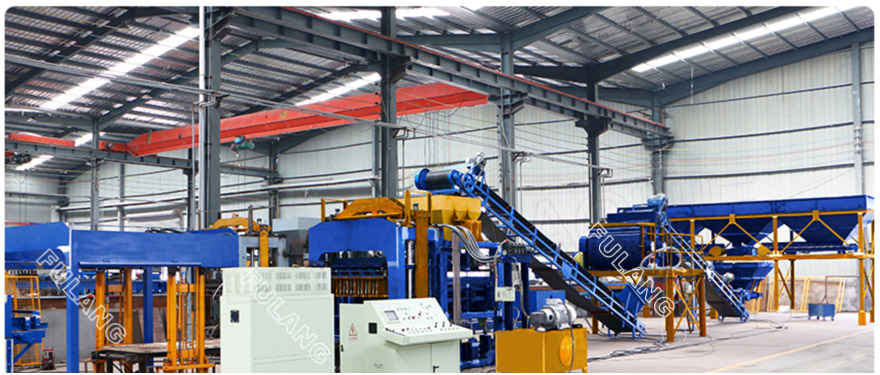

3.Production line
with host machine,JS750 concrete mixer,conveyor belt,batching machine,pallet feeder and brick stacker make this machine work with high efficiency.
4.After service
Machine shipping with detail operation manual and maintenance tips.Make the customer use the machine more convenient.Also we provide oversea installation and training.

Technical Parameters

Dimension of host machine

3500x2300x2930mm

Host machine power

36kw

Moulding Period

10~15s

Pallet size

1300x900x30mm

Vibration force

100kn

Weight

9.8t

Concrete mixer

JQ750

Products

Hollow block, solid block, paver,kerbstones

Workshop

300m2

Raw material

Crushed stone, sand, cement, coal fly ash, cinder...



Customizable Molds

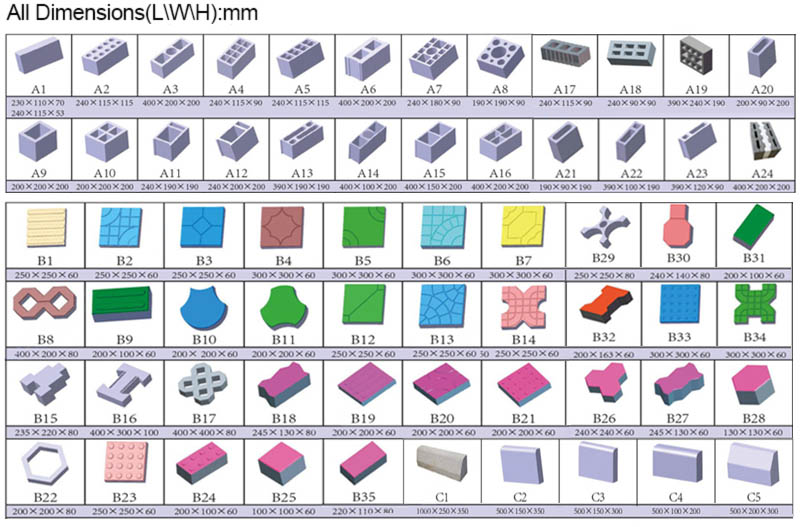

QTF10-15 automatic concrete block making machine can produce various hollow blocks, solid blocks, paving blocks and kerbstone by changing molds. The following picture is the type of brick that this machine can produce. In addition to the brick type on the piccture, we can also customize special molds for our customers according to their needs.


Customer visiting

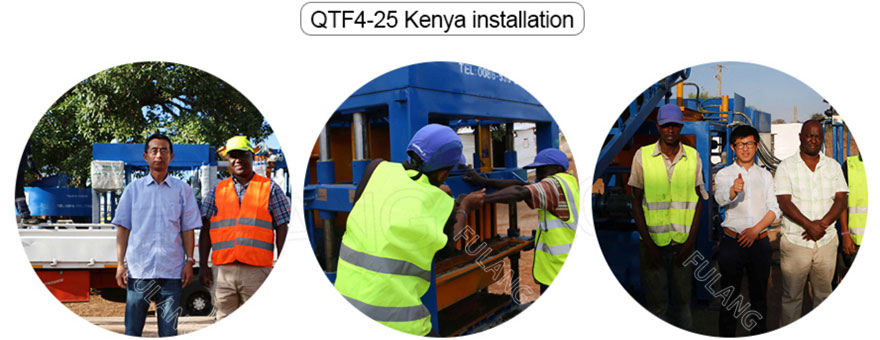

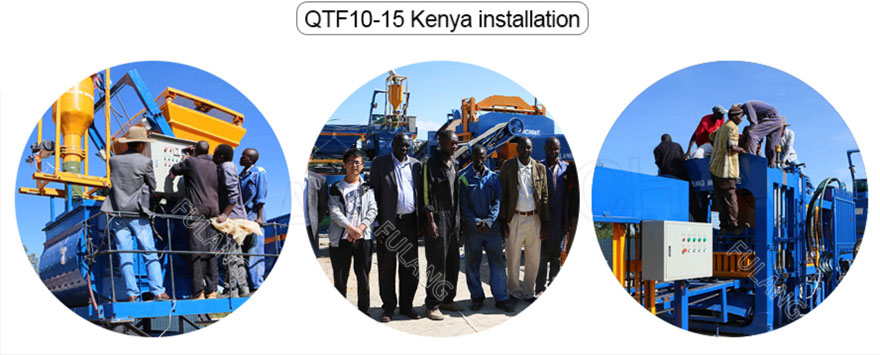

With 16 years development, our products have been sold to more than 80 countries. Till now, about 1200 customers have visited our factory. Also we have engineers stay abroad to help you install the machines and training your workers at your side.
